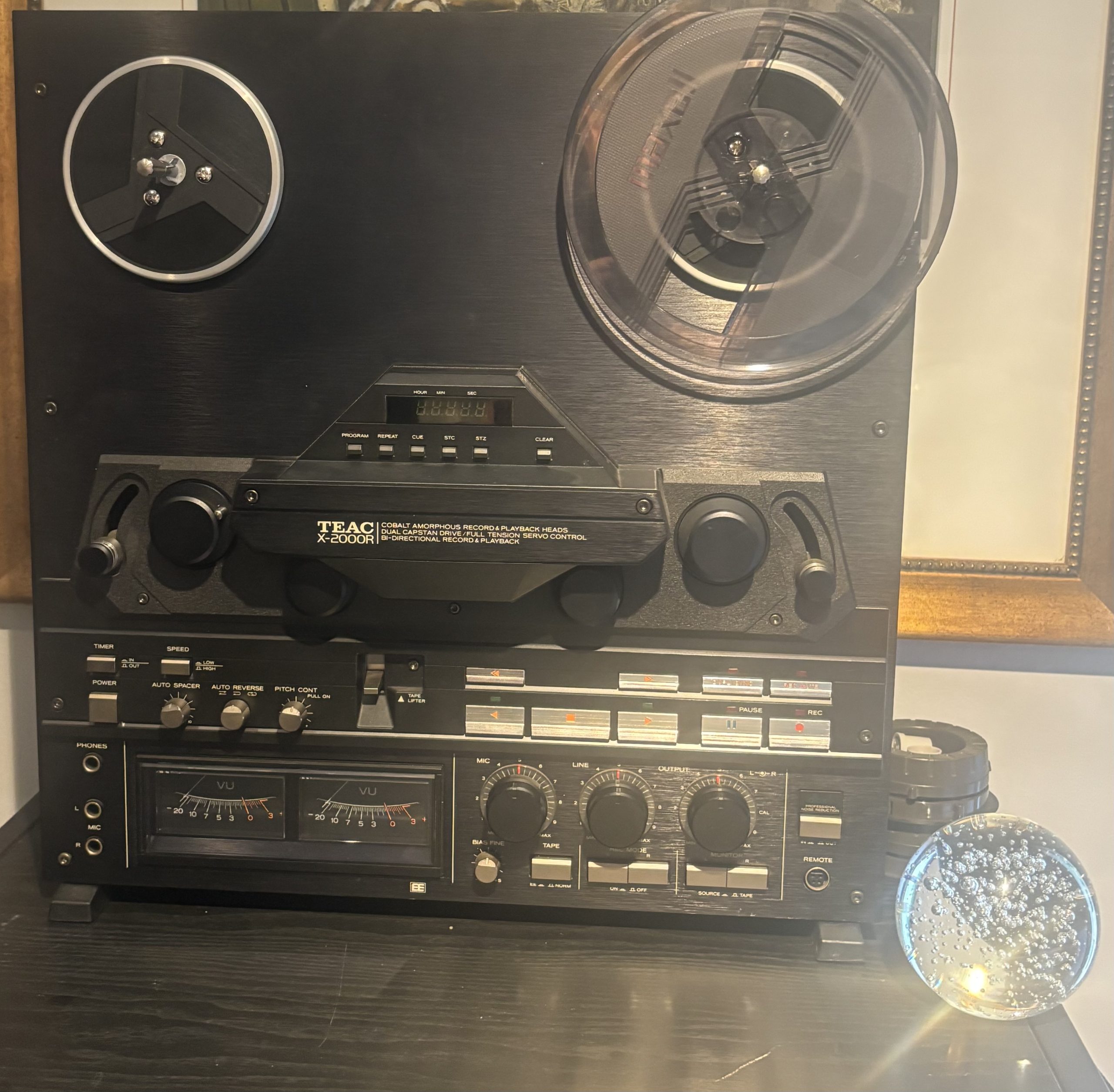

Teac X-2000R Reel to Reel Tape Deck

Description

The TEAC X-2000R is one of the most sophisticated consumer reel-to-reel tape decks of the 1980s, combining serious analog recording capability with a remarkably comprehensive collection of convenience features. Introduced as part of TEAC’s X-series, the X-2000R is a four-track, two-channel stereo deck with automatic reverse recording and playback. Its six-head arrangement—separate erase, record, and playback heads for each direction—allows the machine to record and reproduce in either direction without physically reversing the tape.

The transport is arguably the X-2000R’s greatest engineering achievement. TEAC employed a closed-loop dual-capstan system and a full-tension servo mechanism designed to keep the tape precisely positioned across the heads. Two slotless DC reel motors and an FG-servo DC capstan motor provide controlled tape movement, while a photo-interrupter monitors the tension arm and automatically adjusts reel torque. This sophisticated arrangement contributes to the deck’s impressive 0.03% WRMS wow-and-flutter specification at 7½ ips.

The X-2000R accepts both 7-inch and 10½-inch reels and operates at 3¾ and 7½ ips. At the higher speed, TEAC specified a frequency response extending from 30Hz to 40kHz, while the lower speed remains capable of 30Hz–24kHz. The deck also incorporates cobalt-amorphous heads and a 150kHz bias/erase oscillator, features intended to maximize high-frequency extension and recording performance. EE-type high-performance tape is supported as well.

Another major attraction is TEAC’s built-in dbx Type I noise-reduction system. With dbx engaged, the published signal-to-noise figure rises to approximately 100dB, dramatically reducing tape hiss and allowing recordings to achieve an unusually wide dynamic range for analog tape. The deck also provides pitch control, an electronic real-time counter, automatic spacing, timer operation, tape-lift functions, and TEAC’s COMPUMATIC auto-locator system for locating specific sections of a recording.

The machine’s large illuminated VU meters, substantial controls, metal reel hubs, and imposing chassis give it the unmistakable appearance of a professional recording component. At approximately 21kg, it is also built to a level of mechanical solidity uncommon among consumer tape machines. Dimensions are approximately 17 inches wide by 18 inches high and 10½ inches deep, making it a substantial component that requires a sturdy stand.

Owners have long praised the X-2000R’s transport stability and sound quality. User reviews collected by HiFi Engine describe its “super quiet” operation and “outstanding” build quality, while another owner praised the “most stable transport” he had encountered and its exceptionally clean recording and playback. These are owner impressions rather than controlled laboratory reviews, but they help explain the deck’s enduring reputation among reel-to-reel enthusiasts.

Today, a properly serviced X-2000R remains an impressive example of late-era Japanese analog engineering. Its combination of automatic reverse operation, sophisticated tape transport, six-head architecture, dbx noise reduction, EE compatibility, and extended frequency response makes it considerably more than a nostalgic tape machine. For enthusiasts interested in recording and playing open-reel tape, the X-2000R represents TEAC’s attempt to bring near-professional transport and recording technology into a highly refined home-audio component.

Review Quotes

• HiFi Engine owner: “Super quiet, gentle controls, build quality is just outstanding.”
• HiFi Engine owner: “This machine has the most stable transport I have ever seen.”
• HiFi Engine owner: Described its recording quality and playback as “incredible” and praised its clean sound.
• Audiogon owner: “The sound is heavenly,” while describing the X-2000R as a “statement piece.”

Product Specifications

• Type: Auto-reverse, four-track, two-channel stereo reel-to-reel tape deck
• Recording/playback: Bidirectional
• Heads: 6 — 2 erase, 2 record, 2 playback
• Head type: Cobalt-amorphous record/playback heads
• Motors: 1 FG-servo DC capstan motor; 2 slotless DC reel motors
• Transport: Closed-loop dual-capstan, full-tension servo
• Tape speeds: 3¾ and 7½ ips
• Reel capacity: 7-inch and 10½-inch
• Wow & flutter: 0.03% WRMS at 7½ ips; 0.04% at 3¾ ips
• Frequency response: 30Hz–40kHz at 7½ ips; 30Hz–24kHz at 3¾ ips
• Signal-to-noise ratio: Approximately 65dB; up to 100dB with dbx
• Noise reduction: dbx Type I
• THD: 0.8% at 1kHz
• Stereo separation: 50dB at 1kHz
• Bias/erase frequency: 150kHz
• Inputs: Line 60mV/50kΩ; microphone 0.25mV
• Outputs: Line 0.45V; headphone output
• Fast wind: Approximately 100 seconds for 1,800 feet
• Features: Auto reverse, pitch control, real-time counter, auto locator, block repeat, auto spacer, timer operation
• Dimensions: Approximately 432 × 456 × 268mm
• Weight: Approximately 21kg (46 lbs.)
• Era: Mid-1980s
• Country of manufacture: Japan
