Rotel RDD-1580 DAC

Description

The Rotel RDD‑1580 DAC is a high-performance standalone digital-to-analog converter designed to bring audiophile-grade sound quality to modern digital music sources. Introduced by Rotel as part of its 15-series component lineup, the RDD-1580 reflects the company’s long-standing philosophy of combining careful engineering, high-quality components, and extensive listening tests to deliver accurate, musical sound reproduction.

Built to serve as the central digital hub in a hi-fi system, the RDD-1580 converts digital audio signals from computers, disc players, streaming devices, and mobile sources into a clean, high-resolution analog signal suitable for connection to preamplifiers or integrated amplifiers. The design emphasizes flexibility and performance, supporting both legacy digital formats and modern high-resolution audio files.

At the heart of the RDD-1580 are dual Wolfson WM8740 digital-to-analog converter chips, arranged in a complementary configuration. Instead of using a single DAC to process both channels, Rotel employs two converters to reduce noise and distortion while improving channel separation and overall resolution. This design approach helps deliver a transparent, detailed presentation that highlights subtle musical information.

Rotel also paid particular attention to the DAC’s power supply and analog output stage. A custom Rotel-designed toroidal transformer forms the foundation of the power supply, while specialized slit-foil capacitors provide stable current delivery to critical circuitry. These elements contribute to the unit’s low noise floor and stable performance during demanding musical passages.

Connectivity is another major strength of the RDD-1580. The DAC includes multiple digital inputs to accommodate a wide variety of sources. A rear asynchronous USB input allows direct connection to a computer with support for audio up to 24-bit/192 kHz, while coaxial and optical inputs support high-resolution LPCM signals from CD transports, streamers, or media players. The front panel USB port can also connect directly to Apple devices, and the unit originally shipped with a Bluetooth adapter for convenient wireless playback.

The RDD-1580’s analog output stage includes both balanced XLR and single-ended RCA outputs, enabling seamless integration into a wide range of stereo systems—from modest integrated amplifier setups to fully balanced high-end preamp/power amp configurations. This flexibility made the DAC popular among listeners upgrading the digital performance of existing systems.

Reviewers consistently praised the RDD-1580 for its balanced tonal character and detailed sound reproduction. In its evaluation, What Hi-Fi? noted the DAC’s strengths, stating it offers “remarkably clear and precise sound” with an “even tonal balance” and expressive vocal presentation. The publication also highlighted its strong feature set and solid construction.

The overall sonic presentation is typically described as clean, neutral, and controlled—characteristics that align with Rotel’s traditional “Balanced Design Concept,” where measured performance and subjective listening tests guide the final voicing of the product.

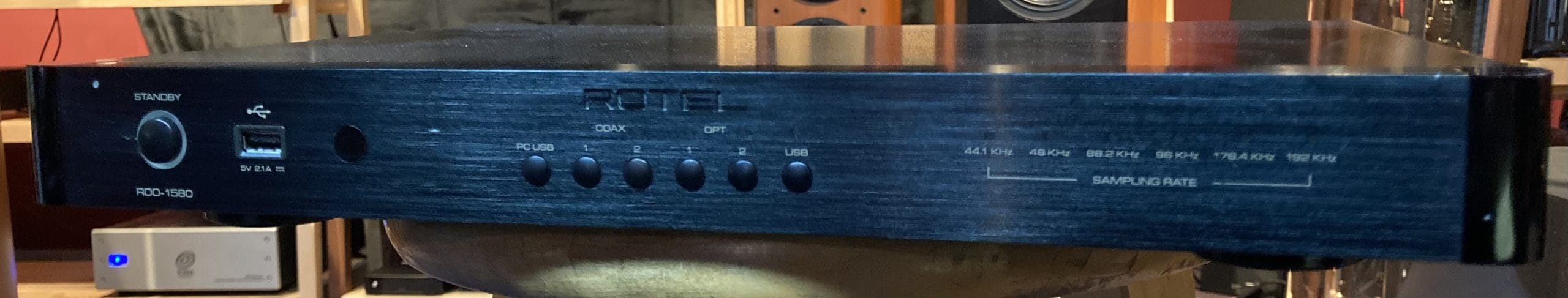

Physically, the RDD-1580 follows Rotel’s classic component styling, featuring a full-width aluminum chassis with a simple front display and robust internal construction. Its 1U-height form factor also allows convenient rack installation, making it suitable for both home listening systems and custom installations.

Even years after its introduction, the Rotel RDD-1580 remains a respected DAC among audio enthusiasts looking for a well-built, flexible digital source component capable of delivering high-quality audio performance.

Product Specifications

• Product Type: Digital-to-Analog Converter (DAC)

• DAC Chipset: Dual Wolfson WM8740 DACs

• Maximum Resolution: Up to 24-bit / 192 kHz (USB and digital inputs)

• Frequency Response: 10 Hz – 95 kHz (±3 dB)

• Total Harmonic Distortion: < 0.004% (20 Hz – 20 kHz)

• Signal-to-Noise Ratio: 128 dB (A-weighted)

• Digital Inputs:

  • 1 × asynchronous USB-B (computer)

  • 1 × front USB (Apple iOS devices)

  • 2 × coaxial digital

  • 2 × optical digital

• Supported Digital Formats: LPCM up to 24-bit / 192 kHz

• Analog Outputs:

  • Balanced XLR (4V output)

  • Unbalanced RCA (2V output)

• Power Supply: Custom Rotel toroidal transformer

• Power Consumption: 25 W (0.5 W standby)

• Dimensions: 17″ W × 2.13″ H × 12.5″ D (431 × 55 × 316 mm)

• Weight: 11 lb (5.1 kg)
