Hafler DH200 Power Amp

Status & Appearance:

Used Good

$275.00

Description

The Hafler DH‑200 is a legendary solid‑state stereo power amplifier first introduced in the late 1970s under the Hafler brand—a company founded by audio pioneer David Hafler, co‑founder of Dynaco and a key figure in high‑fidelity audio design. The DH‑200 was offered both fully assembled and as a kit, making serious amplification more accessible to hobbyists as well as seasoned audiophiles. Though decades old, it still shows up in enthusiast systems and vintage gear markets, often praised for its robust build and musical performance.

Unlike many mainstream amplifiers of its era, the DH‑200 focuses squarely on audio purity and simplicity over bells and whistles. Internally the DH‑200 uses a traditional Class‑AB, linear power design powered by a large unregulated transformer with generous filter capacitance, giving it both solid continuous power and strong dynamic headroom. This design choice gives the amp a noticeable ability to deliver punchy music transients without strain, something many users remark on even decades after its release.

At its heart, the DH‑200 uses MOSFET output devices—four per channel—to blend the sonic smoothness often attributed to valve amps with the reliability and current‑handling ability of solid‑state transistors. The MOSFETs are individually tested and graded at the factory to ensure balanced performance across output stages.

One of the DH‑200’s most notable features is its exceptionally low distortion and wide frequency response, even at high power output. According to published specifications, the amplifier maintains less than 0.02% total harmonic distortion up to its rated 100 watts per channel into 8 Ω, across the entire 20 Hz–20 kHz audible range. It also boasts excellent extended response beyond the audio band, measuring well up toward ultrasonic frequencies, which can subtly improve the sound quality within the audible band.

Users frequently observe that the DH‑200 “punches above its class”, delivering clear, open midrange and strong bass grip with little coloration. Real‑world testing has shown very low intermodulation distortion across a broad range of power levels, reinforcing the spec data that this amp was built to deliver clean, musical power rather than raw wattage alone.

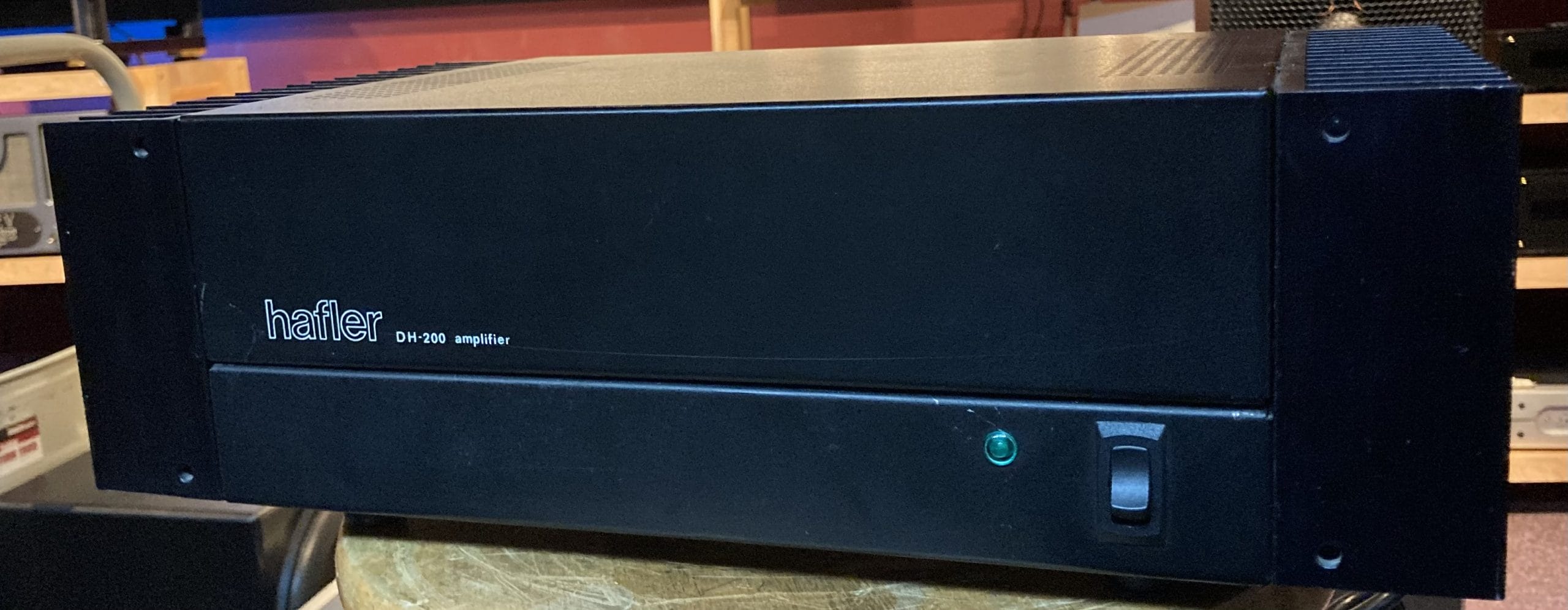

The amplifier’s front panel is simple and functional—power switch and indicator lights with robust five‑way binding posts on the rear for speaker connections. There are no tone controls or extra features, reflecting the classic Hafler philosophy that least‑altered amplification yields the best sound. This straightforward design also makes the DH‑200 an excellent candidate for pairing with a wide variety of preamplifiers and passive preamp designs.

Collectors and vintage audio fans value the DH‑200 not only for performance but also for its build quality and durability. Many units remain in regular use 30+ years after manufacture, with users reporting decades of reliable service—even after being purchased used at modest prices.


Example Review Quotes

  • Many classic audio reviewers and owners describe the DH‑200 as a “music‑maker, not just a power amp” with “clear and crisp sound, plenty of slam” that belies its age.

  • Built MOSFET stages allow it to deliver clean watts happily, even under demanding conditions, according to technical analysis.

  • Vintage enthusiasts note that it still easily exceeds its specs decades later and remains musically satisfying in modern systems.


Hafler DH‑200 Power Amplifier – Product Specifications

  • Type: Stereo power amplifier (Class‑AB solid state)

  • Output Power: ~100 W per channel into 8 Ω (continuous)

  • THD (20 Hz–20 kHz): <0.02% up to rated power

  • SMPTE Intermodulation Distortion: <0.005% (@ 1–100 W into 8 Ω)

  • Typical THD at 100 WPC: 1 kHz: 0.0015%; 10 kHz: 0.005%; 20 kHz: 0.012%

  • Frequency Response: ±0.5 dB 10 Hz–40 kHz (@ 100 W); –3 dB 1–100 kHz (@ 1 W)

  • Signal‑to‑Noise Ratio: >100 dB unweighted @ 100 W

  • Damping Factor: 150 @ 1 kHz; 50 @ 10 kHz into 8 Ω

  • Input Sensitivity: ~1.5 V RMS for rated output

  • Input Impedance: ~22 kΩ

  • Semiconductors: 26 transistors, 8 power MOSFETs, 24 diodes, 4 Zener diodes, 1 bridge rectifier

  • Dimensions: ~5⅛ × 16 × 10½ in (H × W × D)

  • Weight: ~26 lb (11.8 kg)

  • Country of Manufacture: USA (Pennsauken, NJ)
