Wadia 151 Power DAC Mini

Description

The Wadia 151 PowerDAC Mini is an innovative and compact digital‑to‑analog converter plus integrated amplifier that brings high‑end digital audio performance to systems with minimal components and maximum simplicity. Part of Wadia Digital’s storied lineage of DAC engineering, this model was introduced as a more affordable and streamlined version of the company’s legendary PowerDAC products. It combines a sophisticated DAC with a built‑in power amplifier, making it ideal for modern digital music systems or minimalist hi‑fi setups.

At its core, the PowerDAC Mini uses Wadia’s proprietary DigiMaster reconstruction and up‑sampling algorithms to convert digital signals into high‑quality analog audio, then drives speakers directly with its internal amplification. This approach is distinct from most traditional separates where the DAC and amplifier are separate devices; instead, Wadia keeps the signal in the digital domain longer and employs a DirectConnect digital volume control to maintain signal purity before conversion. Incoming PCM data is up‑sampled to 24‑bit/384 kHz to reduce interpolation errors and support smooth, accurate playback.

The PowerDAC Mini’s amplification stage is rated for roughly 50 watts per channel into 4 ohms, and about 25 watts per channel into 8 ohms—enough to comfortably drive efficient bookshelf speakers or modest floor‑standers in small to medium rooms. While not designed for high‑power loudspeakers, its compact digital Class‑D‑style output delivers clean, controlled power with strong transient response. Reviewers at the time noted that although this output level isn’t aimed at large rooms or power‑hungry speakers, “clarity and midrange performance” remain standout features of the design.

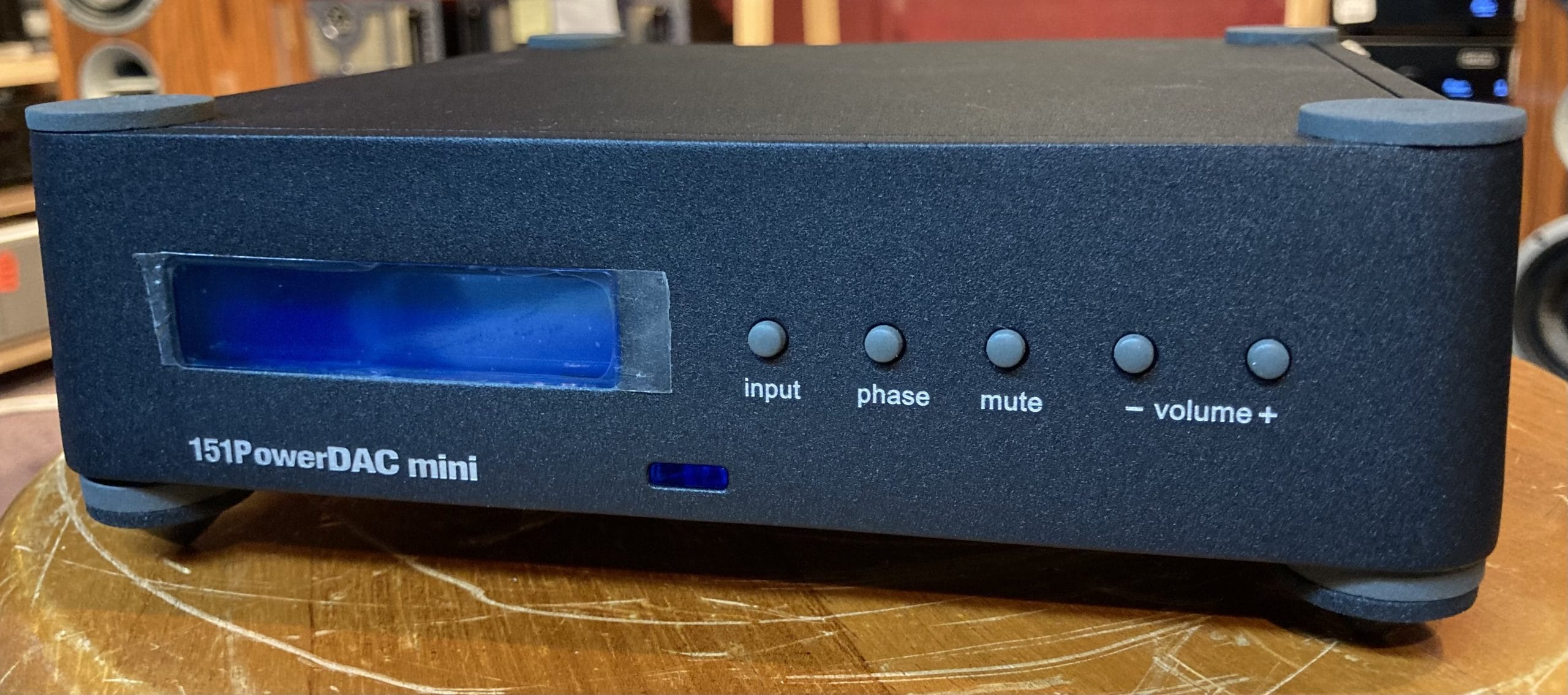

The unit’s connectivity reflects its digital focus: two coaxial S/PDIF inputs, one Toslink optical input, and a USB‑B port (capable of up to 24‑bit/96 kHz over USB and up to 24‑bit/192 kHz over other inputs) cover virtually all digital sources of the era—from desktop computers to CD transports and network streamers. A backlit display and straightforward front‑panel controls provide easy access to input selection, volume, phase, and mute, while the included IR remote controls system functions.

Sound‑quality impressions from period reviews describe the PowerDAC Mini as “musically involving and fundamentally solid,” with particularly strong soundstage and clarity—attributes that echo Wadia’s legacy for transparent digital playback. The Absolute Sound praised the unit’s ability to deliver a clean, engaging midrange and detailed treble, though it also noted power limitations compared to larger separates.

Aesthetically, the PowerDAC Mini shares the compact footprint of Wadia’s iTransport audio products, measuring just 2.7″ × 8″ × 8″ and finished in sleek black or silver. Its small size and integration make it particularly appealing for desktop hi‑fi systems, small living‑room setups, or secondary audio systems where space is at a premium.

Even years after its introduction, the Wadia 151 PowerDAC Mini remains sought after in the used market because it represents a unique combination of high‑resolution digital conversion and integrated amplification, wrapped in a minimalist and elegant package that still delivers compelling performance for digital music lovers.

Product Specifications

• Component Type: DAC + Integrated Amplifier

• DAC Processing: Wadia DigiMaster digital reconstruction and up‑sampling (to 24‑bit/384 kHz)

• Power Output: ~50 W per channel into 4 ohms; ~25 W per channel into 8 ohms

• Digital Inputs:

  • 2 × Coaxial S/PDIF (RCA)

  • 1 × Optical (Toslink)

  • 1 × USB‑B (asynchronous digital)

• Supported Input Rates:

  • USB up to 24‑bit/96 kHz

  • Coax/Optical up to 24‑bit/192 kHz

• Digital Volume Control: Wadia DirectConnect with digital domain volume processing

• Upsampling: 24‑bit/384 kHz via DigiMaster algorithm

• User Controls: Front‑panel buttons and backlit display (input, volume, phase, mute)

• Remote: Full‑function aluminum IR remote included

• Frequency Response: Approx. 20 Hz – 20 kHz ±0.7 dB

• Signal‑to‑Noise Ratio: ~103 dB

• THD+N: 0.03 % – 0.11 % (varying with output level)

• Dimensions: 2.7″ H × 8″ W × 8″ D (approx.)

• Weight: ~6 lb / 2.7 kg
