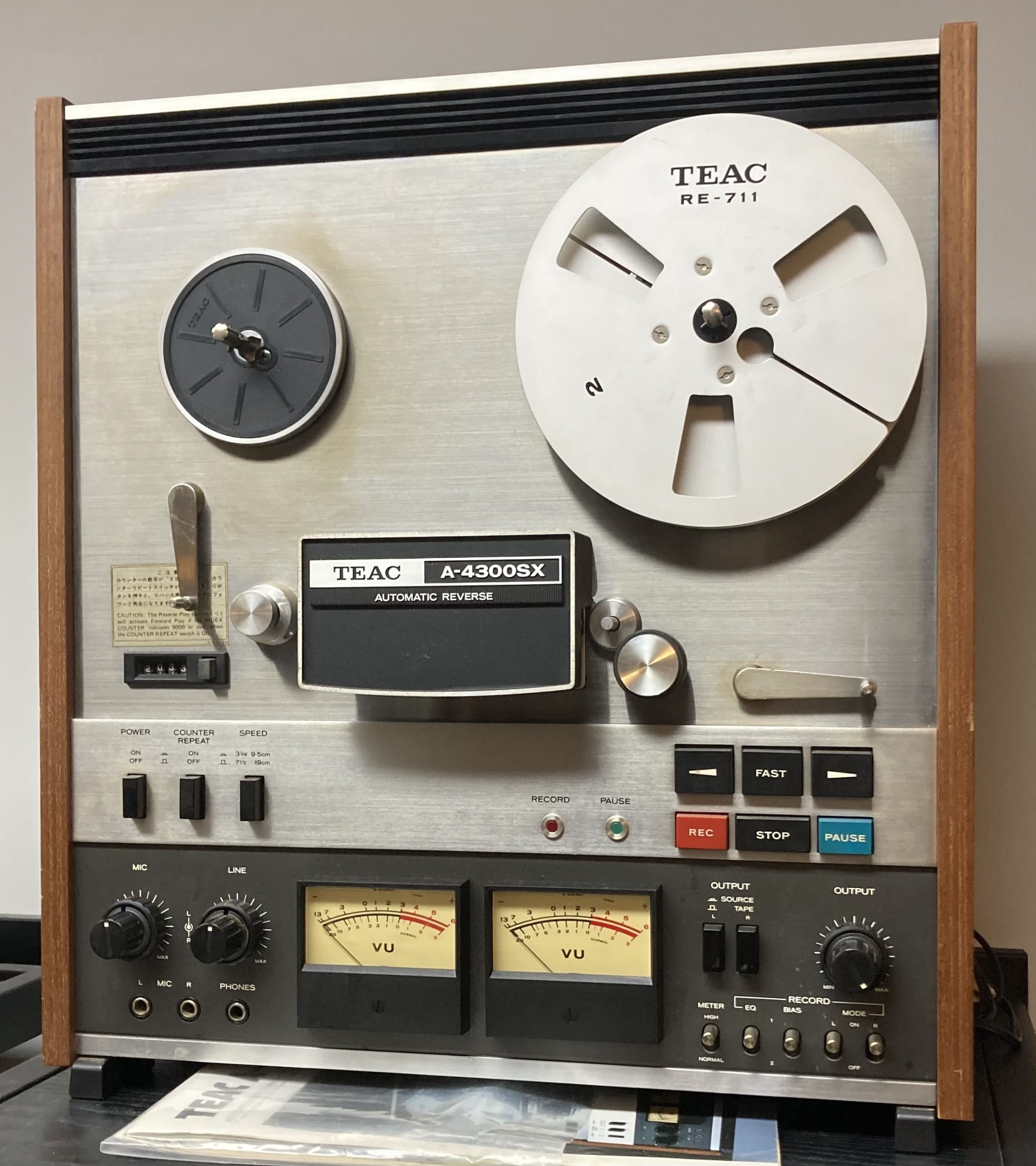

Teac A-4300SX Reel to Reel Tape Deck

Description

The TEAC A‑4300SX is a classic vintage reel‑to‑reel tape recorder from Japan, representing a mid‑to‑high fidelity consumer analog recording and playback system from the late 1970s. Compared with entry‑level tape decks of the era, the A‑4300SX offered advanced features such as automatic reverse, a three‑motor transport, and four‑head operation — capabilities that made it a compelling choice for both music lovers and home recordists wanting superior analog sound and flexibility.

At a time when cassette recorders dominated the consumer audio market, the A‑4300SX stood out by preserving the open‑reel tape format’s wide dynamic range and low noise floor. Designed around a four‑head configuration (erase, record, and two playback heads), it allowed for bi‑directional playback and enhanced monitoring during recording. This meant users could listen to what was being recorded in real time — a significant advantage in capturing accurate sound and making adjustments on the fly.

The transport system of the A‑4300SX featured three motors: a dual‑speed capstan motor that drove the tape past the heads at precise speeds, and two eddy‑current induction motors for each reel spindle, providing consistent take‑up tension and rewind/fast‑forward torque. This robust mechanism delivered reliable tape motion with low wow and flutter — typically around 0.06% at the higher 7½ ips speed — helping maintain stable pitch and minimal speed fluctuation.

One of the hallmark conveniences of the A‑4300SX was its automatic reverse playback. At the end of one side, the transport would automatically flip direction and continue playing, essentially doubling playtime without manual intervention — a feature cherished by users who wanted uninterrupted listening during long sessions. Additionally, the deck included counter repeat functionality and punch‑in recording, allowing sections of tape to be replayed or overdubbed with precision.

The frequency response of the A‑4300SX extended from roughly 30 Hz to 28 kHz at 7½ ips, ensuring a broad audio spectrum that captured both deep bass and detailed highs typical of analog reel‑to‑reel playback; at 3¾ ips the response was narrower but still musical. The signal‑to‑noise ratio was around 55–58 dB, respectable for consumer decks of its time and indicative of TEAC’s attention to low noise design.

Physically the unit was substantial, weighing about 23 kg (around 50.6 lb) and featuring a wooden or woodgrain cabinet with a brushed aluminum faceplate patterned after high‑end hi‑fi gear of the era. Its capacious design accommodated up to 7‑inch reels, making it suitable for extended recordings and home theater soundtracks alike.

While modern digital recording has largely supplanted magnetic tape, the TEAC A‑4300SX retains appeal among collectors, vintage audiophiles, and analog enthusiasts. Many owners enjoy its warm, natural sound and mechanical charm, and the deck is often restored and used to archive analog recordings or to play back older tapes with authenticity that digital emulations struggle to replicate.

Review Quotes

“Smooth, reliable transport with automatic reverse — ideal for uninterrupted playback.” — Owner summary based on user reports

“Feels like classic vintage hi‑fi gear: robust build and rich analog sound.” — Community sentiment from reel‑to‑reel forums

“Three motors and four heads give it performance beyond typical consumer decks.” — General assessment of design features

These comments highlight the A‑4300SX’s mechanical reliability, analog sound character, and advanced transport features compared with many contemporaries.

Product Specifications

General

• Product type: Reel‑to‑reel tape recorder / tape deck

• Manufacturer: TEAC

• Model: A‑4300SX

• Category: Mid‑high fidelity consumer tape recorder

• Country of manufacture: Japan

• Era: 1970s (circa 1975–1979)

Tape / Track

• Track format: 4‑track, 2‑channel stereo/monaural

• Reel size: Up to 7 inches

• Tape speeds: 3¾ and 7½ inches per second

• Wow & flutter: 0.06% @ 7½ ips; 0.09% @ 3¾ ips

Heads / Transport

• Heads: 4‑head system (erase, record, 2× playback)

• Motors: 3 (1 capstan, 2 reel)

• Automatic reverse: Yes

• Punch‑in recording: Yes

• Counter repeat / auto replay functions: Yes

Audio Performance

• Frequency response (7½ ips): ~30 Hz – 28 kHz

• Signal‑to‑Noise ratio: ~55–58 dB

• Distortion: ~1%

• Stereo separation: ~50 dB

Inputs / Outputs

• Line input/output (RCA)

• Microphone input(s)

• Headphone output

Physical

• Dimensions: ~440 × 488 × 216 mm

• Weight: ~23 kg (50.6 lb)
