Sony 5000F Vintage FM Tuner

Description

The Sony 5000F is a highly regarded vintage FM stereo tuner introduced by Sony Corporation of Japan around 1968–1971, designed to deliver exceptional radio reception performance during the heyday of analog FM broadcasting. The “F” in its model name stands for FET (Field‑Effect Transistor), indicating its sophisticated solid‑state front‑end design at a time when vacuum tubes were rapidly being replaced by transistorized circuitry in consumer hi‑fi equipment.

At a time when FM broadcast stations were proliferating and demanding greater selectivity and sensitivity from tuners, Sony engineered the ST‑5000F as a top‑tier component aimed at audiophiles and dedicated radio enthusiasts. The tuner’s superheterodyne design with multiple RF stages, ceramic IF filters, and careful shielding helped ensure excellent rejection of unwanted signals, strong capture of weak stations, and minimal distortion across its stereo bandwidth.

One of the hallmarks of the 5000F’s engineering is its multi‑stage IF and RF circuitry. The front end uses low‑noise FETs and a high‑precision tuning gang to achieve superior sensitivity and selectivity, allowing the tuner to resolve closely spaced stations even in crowded urban environments. Its IF section, with numerous amplifier stages and ceramic filters, enhances rejection of adjacent‑channel interference while preserving stereo separation.

The tuner’s muting and high‑blend features give listeners finer control over weak or noisy signals. When the stereo signal weakens, the high‑blend circuit allows the left and right channels to mix, reducing high‑frequency noise without fully reverting to mono. Muting thresholds are adjustable, letting users tailor how the tuner holds onto weaker stations.

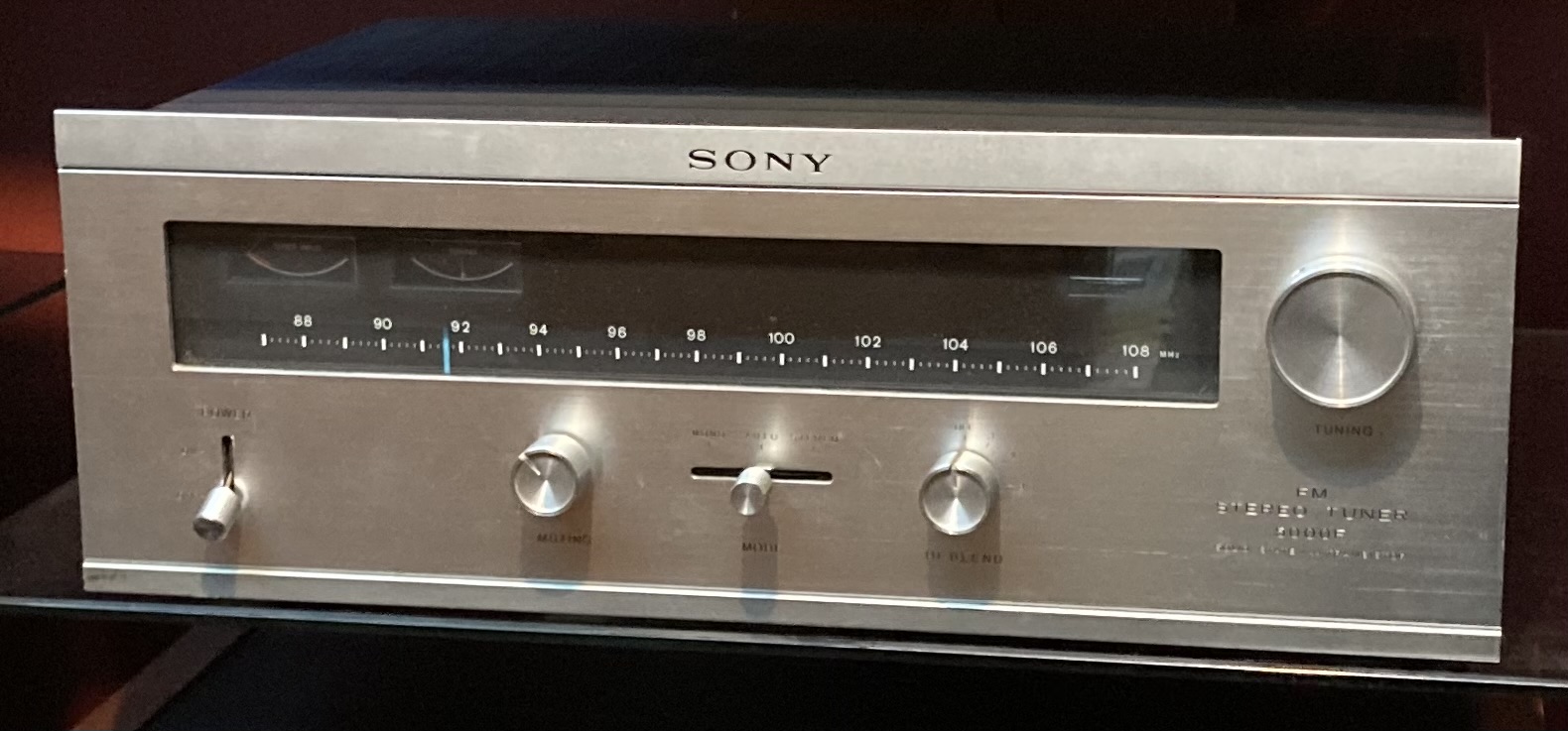

On the front panel, the ST‑5000F sports an analog tuning dial with a long linear scale, complemented by a tuning meter and a signal strength meter. These visual aids make it easy to precisely tune stations and optimize FM reception. A stereo indicator light lets listeners know when a true FM stereo broadcast is being received, a welcome feature in an era before digital displays and auto‑seek tuning.

Owners and collectors of vintage audio equipment today still seek out the 5000F not just for its performance but also for its solid build quality and classic aesthetic. The tuner was built with a substantial metal chassis and handsome analog interface typical of late‑1960s Japanese hi‑fi gear. Many units continue to function decades after their original manufacture, provided they’ve been serviced due to age‑related issues like dried‑out capacitors or worn mechanical parts. Enthusiasts often comment that the 5000F, when properly aligned and maintained, can rival more modern tuners in sensitivity and sound quality.

Reviewers and vintage audio aficionados commonly praise the 5000F for its smooth, detailed sound and excellent station lock‑in, with some claiming it outperforms other tuners of its era and remains competitive with much later designs. Its ability to pull in weak stations cleanly, with good stereo decoding and low distortion, makes it a favorite among analog FM listeners who value traditional tuner design.

While modern digital tuners and streaming have largely replaced analog FM tuners in everyday use, the Sony 5000F remains a classic collectible and an example of high‑end analog design from the golden age of stereo.

Example Review Quotes

• Enthusiasts state that the 5000F “can rival even modern tuners in sensitivity and sound quality.”

• Another owner notes it “pulls in weak stations cleanly with excellent stereo decoding,” even compared to gear from later decades.

• Classic gear reviewers have described it as “a beautifully built tuner with superb reception capabilities,” still sought after by vintage audio collectors.

Product Specifications

(Based on the Sony ST‑5000F/FM stereo tuner model)

• Manufacturer: Sony Corporation (Japan)

• Model: ST‑5000F (FET front end)

• Type: Analog FM stereo tuner

• Production Years: ~1968–1971

• Tuning Range: 87.0–108.0 MHz

• Tuning System: Superheterodyne analog with precise 5‑row varicon

• Sensitivity: ~1.5 µV (IHF)

• Signal‑to‑Noise Ratio: ~70 dB

• Capture Ratio: ~1.0 dB

• Selectivity: ~100 dB (IHF)

• Stereo Separation: ≥30–40 dB (varies frequency)

• Frequency Response: 20–15,000 Hz ±0.5 dB

• Distortion: Mono ~0.2%, Stereo ~0.35%

• Muting: Continuously variable (3–15 µV)

• Antenna: 300 Ω balanced & 75 Ω unbalanced

• Outputs: Fixed ~700 mV/10 kΩ & Variable 0–2 V/1 kΩ

• Dimensions: ~400 × 145 × 310 mm

• Weight: ~9.2 kg

• Power Consumption: ~20 W

• Extras: Tuning meter, signal strength meter, hi‑blend & muting controls
