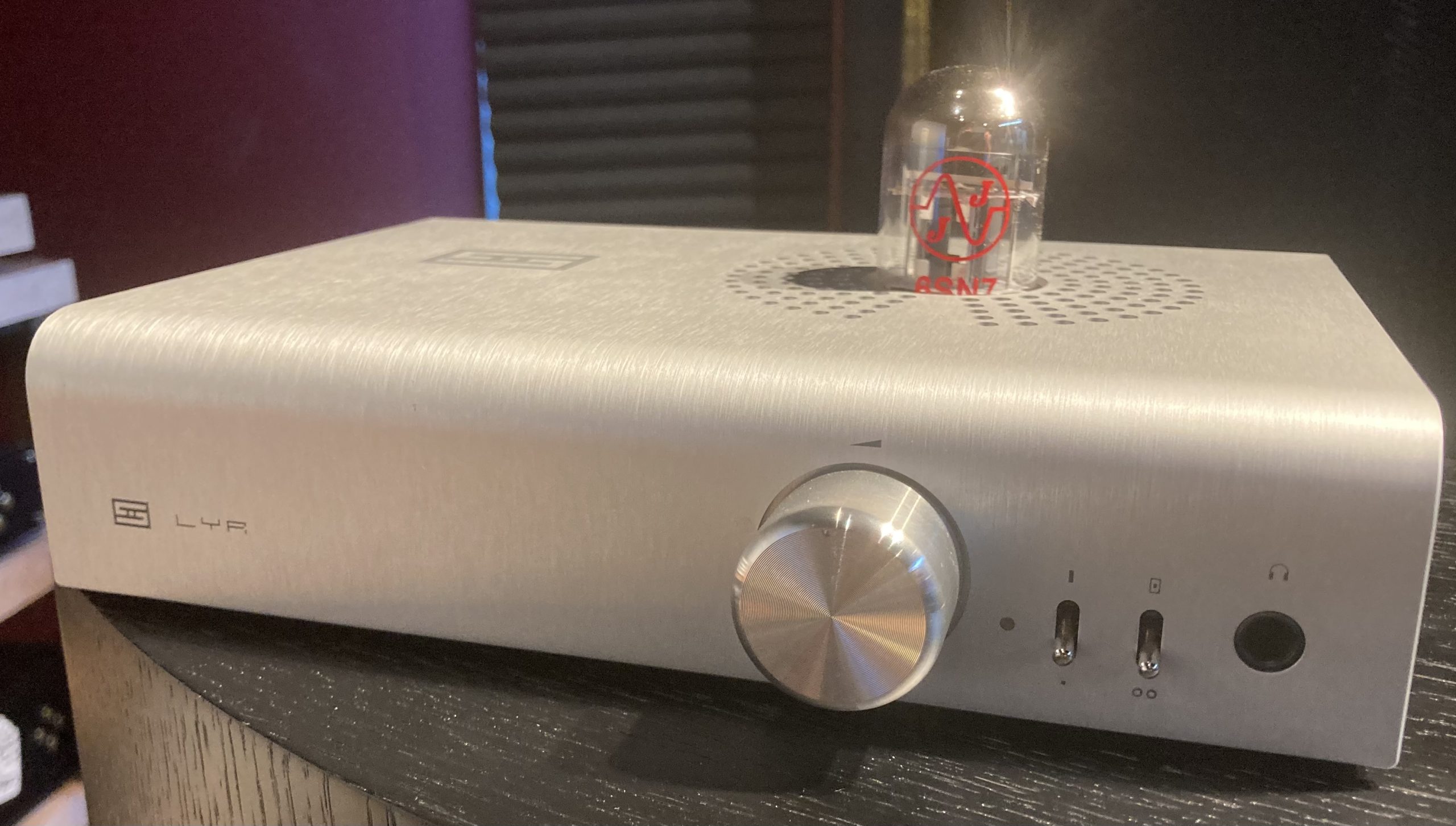

Schiit Audio LYR3 Headphone Amp

Description

The Schiit Lyr 3 is a hybrid tube/solid‑state desktop headphone amplifier designed to bridge the worlds of high‑power amplification and audiophile refinement. As the third iteration of Schiit’s popular Lyr line, it incorporates significant architectural upgrades with proprietary Coherence™ and Continuity™ technologies, resulting in improved sonic performance, power delivery, and versatility compared to its predecessors.

Launched by Schiit Audio, a U.S. manufacturer focused on high‑quality audio gear, the Lyr 3 was developed from the ground up with a “clean‑sheet” design philosophy. It combines a single vacuum tube gain stage with a bipolar transistor output stage to deliver high output power capable of driving a wide range of headphones — from sensitive IEMs to demanding planar magnetics — through a standard single‑ended ¼″ output.

What sets the Lyr 3 apart from many tube amps in its price range is its modular architecture. Users can add optional DAC or phono preamp modules, effectively turning the unit into an all‑in‑one solution for desktop audio setups. Reviewers have noted that this modular flexibility, alongside robust performance, makes the Lyr 3 a compelling choice for both headphone enthusiasts and those looking to streamline their system.

What Reviewers Say

• Dynamic and powerful: One reviewer stated that the Lyr 3 produces “epic dynamic range and immense power,” capable of driving even the most demanding headphones with ease and delivering clear, concert‑level volumes without strain.

• Balanced, engaging sound: According to another review, the amp offers a “smooth, subtle sound that is engaging,” with design and build quality that match its performance credentials. The reviewer highlighted the modular design and refined sonic presentation as key strengths.

• Tube character with versatility: Enthusiasts on audio forums often comment that while the Lyr 3 retains a tube‑influenced warmth and musicality, its clean delivery and power make it feel more like a high‑end solid‑state amp at times — demonstrating its hybrid nature.

Critiques in some reviews mention the lack of balanced outputs and heat generation during operation, but these are often framed as trade‑offs for the power and sound quality on offer.

Key Specifications

Here’s a breakdown of the main technical specifications of the Schiit Lyr 3:

• Topology: Fully discrete current‑mode non‑inverting tube/bipolar hybrid with constant‑transconductance output stage (Coherence™/Continuity™)

• Tube Type: Single 6SN7‑type vacuum tube (plug‑in, rollable)

• Output Power:

  • ~9.0 W RMS per channel into 16 Ω

  • ~6.0 W RMS per channel into 32 Ω

  • ~4.0 W RMS per channel into 50 Ω

  • ~900 mW RMS per channel into 300 Ω

  • ~450 mW RMS per channel into 600 Ω

• Frequency Response: 20 Hz–20 kHz (–0.1 dB)

• THD: < 0.007% (20 Hz–20 kHz, high gain)

• IMD: < 0.005% (CCIR, high gain)

• Signal‑to‑Noise Ratio: > 102 dB (unweighted, referenced to 1 V RMS)

• Crosstalk: < –75 dB (20 Hz–20 kHz)

• Output Impedance: ~0.3 Ω (high gain)

• Gain Settings: High (approx. 17.5 dB) and Low (approx. 3.5 dB)

• Protection: Delayed turn‑on and fast‑off muting relay circuit

• Power Supply: Dual internal transformers with ~72 VA rating and extensive filter capacitance

• Inputs/Outputs: Single‑ended RCA input; ¼″ headphone out; preamp out (RCA)

• Optional Modules: Schiit Multibit DAC, AK4490 DAC, phono preamp module

• Physical Size: Approx. 9″ × 6″ × 2.25″ (WxDxH)

• Weight: Approx. 6 lbs

Bottom Line

The Schiit Lyr 3 remains a respected hybrid headphone amplifier in its class, offering significant power and smooth, musical performance with enough flexibility to satisfy both seasoned audiophiles and tube newcomers alike. Its modular design, robust engineering, and generally positive review reception make it a strong choice for desktop setups where driving demanding headphones and customizing system configuration are priorities.
