Sansui 9090DB Vintage Stereo Receiver

Description

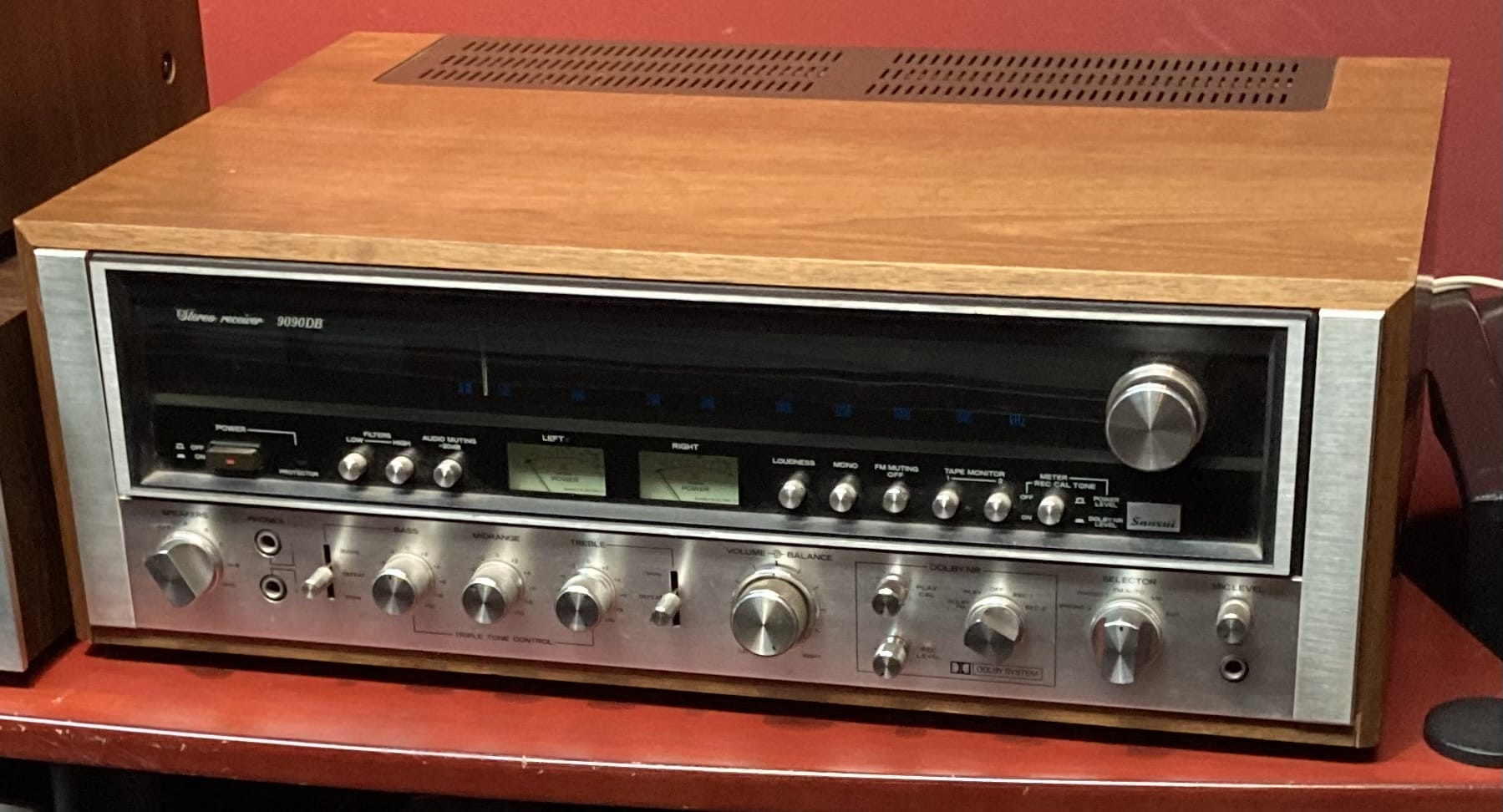

Sansui 9090DB Stereo Receiver

Introduced in 1976 during the golden age of Japanese hi-fi, the Sansui 9090DB is widely regarded as one of the most powerful and desirable stereo receivers of the 1970s. Built at a time when manufacturers competed to produce “monster receivers,” the 9090DB combined exceptional power, advanced features, and luxurious construction into a single chassis. Today it remains a favorite among collectors and vintage audio enthusiasts for its bold aesthetics, musical sound, and tank-like build quality.

The 9090DB is the Dolby-equipped version of Sansui’s already successful 9090 receiver. The addition of a built-in Dolby noise-reduction circuit allowed users to decode Dolby FM broadcasts and improve the signal-to-noise ratio of compatible recordings, a forward-thinking feature for its time. Along with this advanced circuitry, the receiver incorporates a powerful amplifier section capable of delivering a robust 125 watts per channel into 8 ohms with extremely low distortion.

Physically, the receiver embodies the classic “silver-face” design language that defined 1970s hi-fi. A brushed aluminum faceplate, large machined knobs, blue-lit analog power meters, and a walnut veneer cabinet give it a distinctive vintage presence. At more than 50 pounds, the 9090DB’s mass is largely due to its substantial power supply and output stage, which uses a fully complementary transistor design for strong current delivery and reliable operation.

Sound quality is a major reason the 9090DB continues to command respect decades after its release. The amplifier section offers deep, authoritative bass, a full midrange, and clean extended treble. Many listeners describe the presentation as powerful yet smooth—characteristics that helped Sansui build its reputation among hi-fi enthusiasts. With its high output and strong current capability, the receiver can comfortably drive a wide range of speakers, from vintage acoustic-suspension designs to more demanding modern loads.

The receiver also functions as a complete control center for an analog audio system. It includes a sensitive AM/FM tuner, moving-magnet phono stage for turntables, multiple auxiliary inputs, two tape loops, and comprehensive tone controls including separate bass, midrange, and treble adjustments. This versatility made it a centerpiece component in many high-end home systems during the late 1970s.

Today, the 9090DB remains highly sought after in the vintage market. Well-restored examples can command significant prices because of their combination of performance, aesthetics, and historical importance. Many enthusiasts consider it one of the finest receivers Sansui ever produced, representing the peak of the company’s classic solid-state era.

Review Highlights

• Sound & Vision described it as “one of the best receivers of the 1970s.”

• Vintage audio reviewers frequently praise its powerful amplifier section and excellent build quality.

• Collectors often regard the model as one of Sansui’s most iconic ‘monster receivers.’

Key Specifications

• Type: Stereo AM/FM receiver with Dolby noise reduction

• Power Output: 125 watts per channel into 8Ω

• Frequency Response: 10 Hz – 30 kHz

• Total Harmonic Distortion: 0.1%

• Damping Factor: 30

• Tuning Range: FM 88–108 MHz, AM 535–1605 kHz

• Input Sensitivity: 2.5 mV (phono MM), 150 mV (line)

• Signal-to-Noise Ratio: 70 dB (phono), 80 dB (line)

• Channel Separation: 50 dB

• Outputs: Pre-out, tape outputs, speaker terminals

• Dimensions: 540 × 182 × 397 mm (21.3 × 7.2 × 15.6 in)

• Weight: 23.6 kg (≈52 lb)

• Year Introduced: 1976

With its commanding power, classic styling, and warm yet authoritative sound, the Sansui 9090DB stands as one of the defining receivers of the vintage hi-fi era—and continues to deliver impressive performance nearly fifty years after its debut.
