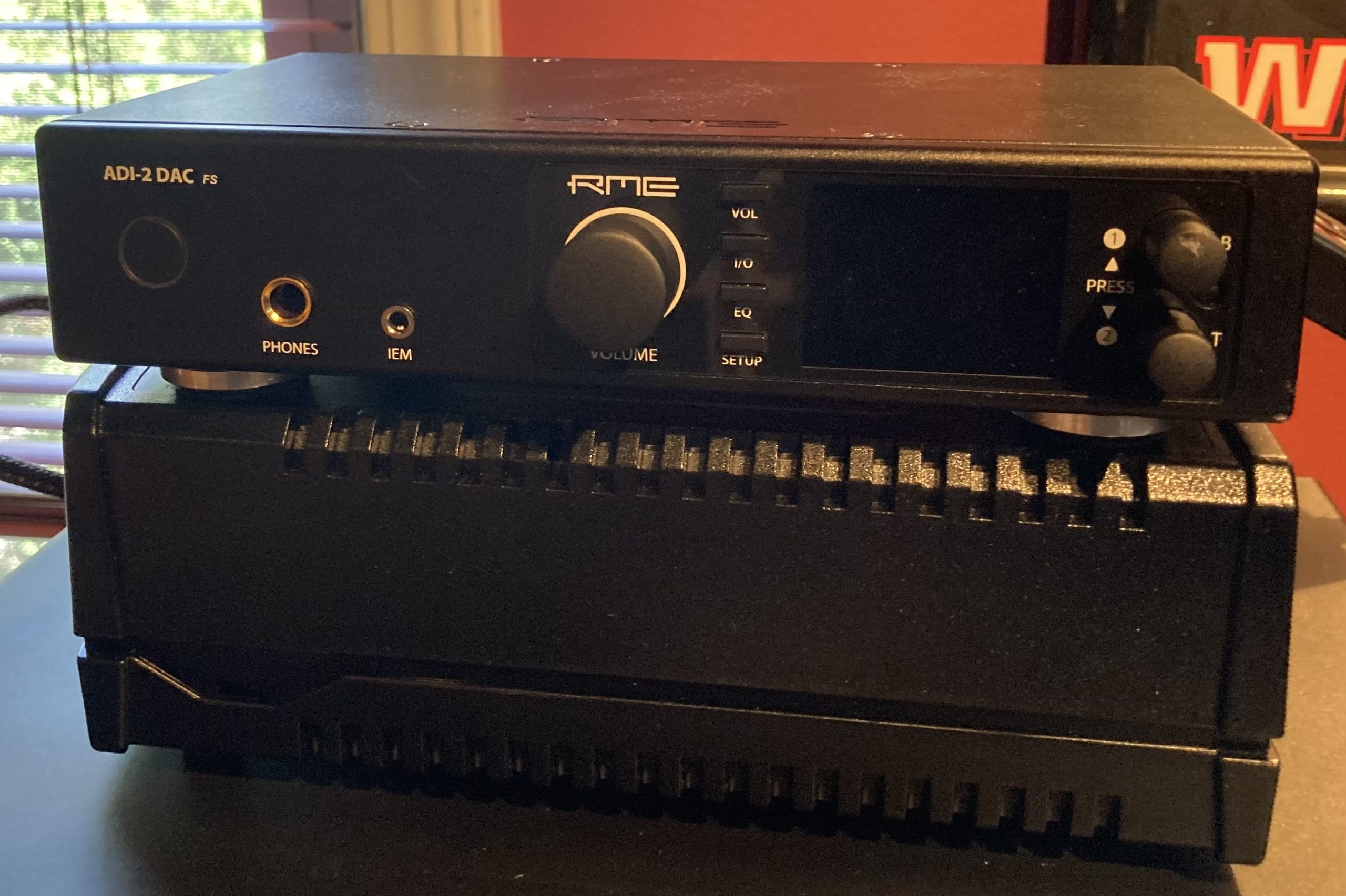

RME ADI-2 DAC FS w/Sbooster Power Supply

Description

The RME ADI-2 DAC FS is one of the most accomplished and versatile digital audio components available today, combining reference-quality digital conversion, a powerful headphone amplifier, extensive DSP capabilities, and professional-grade engineering in a compact desktop chassis. Developed by German pro-audio specialist RME, the ADI-2 DAC FS builds upon the company’s studio heritage while adding features specifically aimed at audiophiles, headphone enthusiasts, and high-resolution music listeners. It has become widely regarded as a benchmark product because it offers both exceptional technical performance and a level of user control rarely found in consumer DACs.

The ADI-2 DAC FS is based around RME’s latest SteadyClock FS technology, which provides extremely low jitter and stable timing for accurate digital conversion. The unit uses a high-performance ESS Sabre DAC architecture and a carefully designed analog output stage to achieve outstanding measurements, including exceptionally low distortion and noise. Rather than relying solely on premium DAC chips, RME’s engineering approach focuses on the entire signal path, including power regulation, clocking, analog circuitry, and software-controlled processing.

One of the ADI-2 DAC FS’s greatest strengths is its extraordinary flexibility. Digital sources can be connected through USB, optical S/PDIF, or coaxial S/PDIF, supporting high-resolution PCM playback up to 32-bit/768 kHz and native DSD playback. The unit can function as a traditional DAC feeding a stereo amplifier, a dedicated headphone amplifier, or a complete desktop audio control center. Balanced XLR and single-ended RCA outputs allow easy integration into everything from compact headphone systems to high-end two-channel setups.

Unlike many DACs that aim for a “set it and forget it” approach, the ADI-2 DAC FS provides extensive digital signal processing tools. Built-in features include a five-band parametric equalizer, bass and treble controls, selectable digital filters, adjustable loudness compensation, balance control, and headphone crossfeed processing. These features allow users to correct headphone characteristics, compensate for room issues, or tailor playback preferences without adding external components. The adjustable loudness function is especially well regarded because it maintains natural tonal balance during lower-volume listening rather than simply boosting bass.

The headphone amplifier is another major highlight. RME equips the ADI-2 DAC FS with its Extreme Power headphone output, capable of driving demanding headphones with very low output impedance and high current capability. A dedicated low-noise design makes it equally suitable for high-impedance studio headphones and sensitive in-ear monitors. Many owners use the ADI-2 DAC FS as the central component of a premium headphone system because it combines conversion, amplification, and tuning options in one compact device.

Reviewers have consistently praised the ADI-2 DAC FS for its combination of accuracy and functionality. Headphones.com highlighted its extensive equalization features, selectable filters, remote control, and flexible crossfeed implementation, describing it as a highly adaptable DAC/headphone amplifier rather than merely a converter.

The Headphoneer praised the unit’s versatility, noting that the ADI-2 DAC FS offers rare features such as built-in EQ and extensive customization while maintaining excellent sound quality. The review emphasized that it has become particularly popular among headphone enthusiasts because it combines professional engineering with audiophile-oriented features.

The physical design reflects RME’s professional background. A sturdy aluminum chassis, bright color display, intuitive controls, and included remote control give the ADI-2 DAC FS a premium feel despite its compact size. Firmware updates have also allowed RME to add refinements and improvements over time, extending the product’s useful life.

The RME ADI-2 DAC FS represents a rare balance of measurement excellence, musical transparency, and practical versatility. Whether used in a high-end stereo system, desktop setup, or headphone reference chain, it remains one of the most complete and technically sophisticated DAC solutions available.

Product Specifications

• Component Type: Digital-to-analog converter / headphone amplifier / DSP processor
• DAC Chip: ESS Sabre ES9028Q2M
• Clocking System: SteadyClock FS low-jitter clock technology
• Maximum PCM Resolution: 32-bit / 768 kHz
• DSD Support: Native DSD playback up to DSD512 (USB)
• Digital Inputs:
  • USB 2.0
  • Optical S/PDIF
  • Coaxial S/PDIF
• Analog Outputs:
  • Balanced XLR
  • Unbalanced RCA
• Headphone Outputs:
  • 6.3 mm Extreme Power headphone output
  • Dedicated IEM output
• Headphone Output Power: Up to approximately 1.5 W per channel (32Ω)
• DSP Features:
  • 5-band parametric EQ
  • Bass and treble controls
  • Loudness compensation
  • Crossfeed processing
  • Digital filter selection
• Frequency Response: 0 Hz–40 kHz+ depending on sample rate/filter setting
• THD+N: Approximately -120 dB-class performance
• Dynamic Range: Approximately 120 dB-class performance
• Display: High-resolution color LCD with meters and spectrum analyzer
• Remote Control: Included infrared remote
• Power Supply: External 12V DC supply
• Computer Compatibility: Windows, macOS, Linux USB audio support
• Dimensions (W × H × D): 215 × 52 × 150 mm (8.5 × 2.0 × 5.9 in.)
• Weight: Approximately 1 kg (2.2 lbs.)
