Revel Performa M20 Speakers

Description

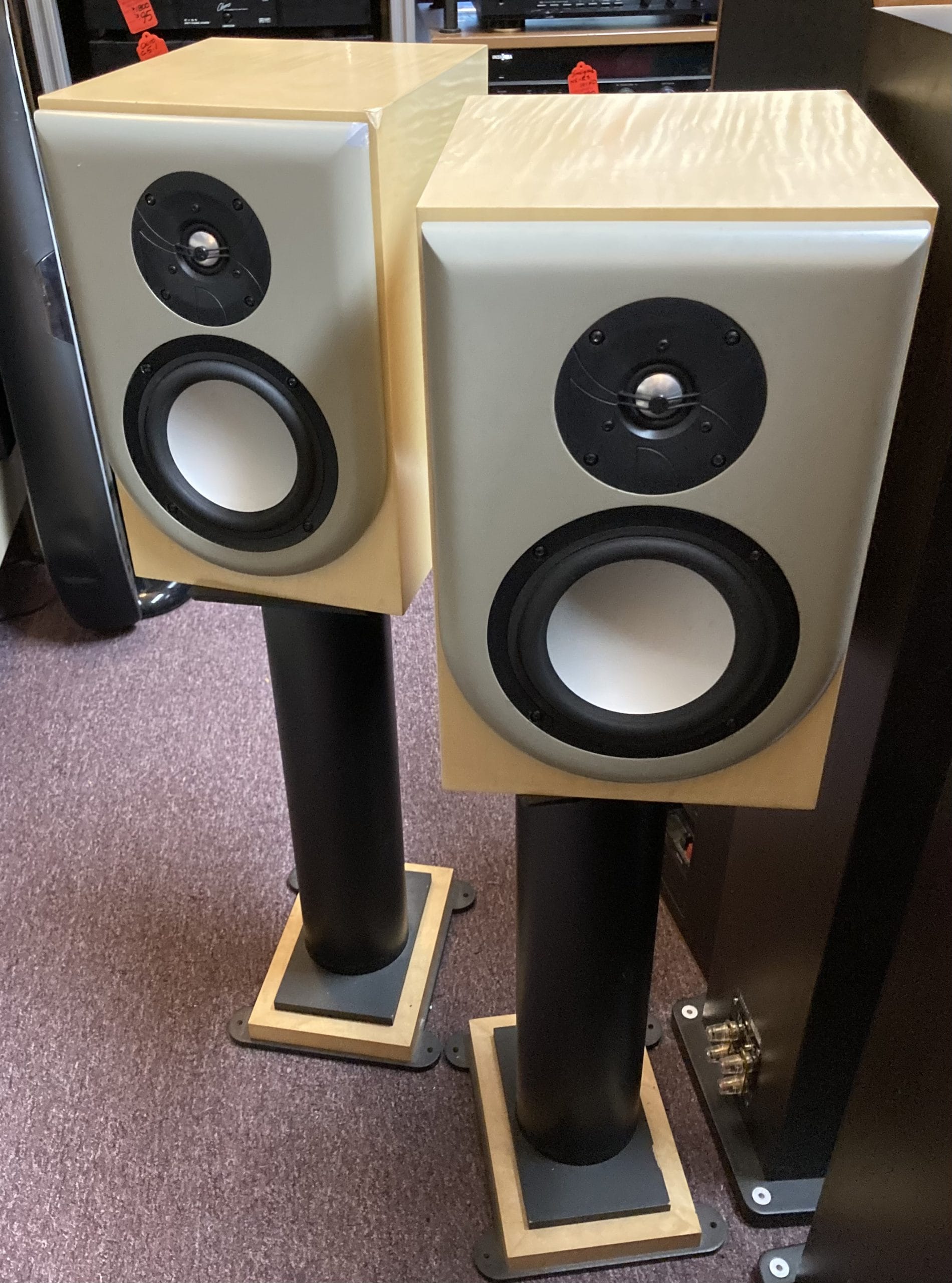

Revel Performa M20 Speakers

The Revel Performa M20 is a highly regarded two-way bookshelf loudspeaker first introduced in the early 2000s, acclaimed for its neutral, revealing sound and premium build quality. Designed and built in the United States by Revel, these speakers were—and still are—championed by audiophiles and reviewers for delivering music with clarity, precision and musicality beyond what many similarly sized loudspeakers offer.

These speakers use high‑quality drivers—an aluminum dome tweeter and a magnesium/alloy woofer—carefully integrated via a sophisticated crossover network. Their real wood veneer cabinets not only add aesthetic appeal but also minimize resonance and diffraction, improving overall fidelity.

While compact in size, the M20 produces a soundstage that many describe as expansive and engaging, with tonal balance that leans neither too warm nor too bright. This makes them versatile for both two‑channel stereo music systems and home theater front channels when paired with a suitable center and subwoofer.

📝 Critical and User Review Quotes

Critics and owners alike often emphasize different strengths and contextual impressions:

• SoundStage! (professional review):
  “Probably the best bookshelf‑sized speaker [he’s heard] regardless of price.” These speakers delivered a starkly clear, neutral and revealing presentation with vocals and instruments sounding extremely natural. Bass, while not the deepest of all speakers, was tight and well‑defined.

• AudioAsylum reviewer SteveM324:
  “The sound is very smooth, musical, and totally grainless… midrange… better than my main system.” This highlights the M20’s strong midband performance and natural timbre with a seamless subwoofer integration when deeper bass extension is needed.

• Another experienced user:
  “There is no hint of excess brightness… magical.” Users describe the speakers as balanced and highly musical, especially in well‑matched systems and environments.

📊 Key Specifications

Here’s a concise specs summary for the Revel Performa M20 speakers:

• Type: 2‑way, stand‑mounted bookshelf loudspeaker

• Drivers:

  • 1″ (25 mm) aluminum‑alloy dome tweeter

  • 6.5″ (165 mm) magnesium/alloy inverted‑dome woofer

• Crossover Frequency: ~2.2 kHz (high‑order filters)

• Frequency Response: Approx. 46 Hz–16 kHz ±1 dB (in‑room)

• LF Extension:

  • –3 dB @ ~44 Hz

  • –6 dB @ ~38 Hz

  • –10 dB @ ~33 Hz

• Sensitivity: ~87 dB @ 2.83 V/m (anechoic)

• Nominal Impedance: 6 Ω (min ~4.4 Ω)

• Enclosure: Bass‑reflex (rear port)

• Dimensions: 15.5″ H × 10″ W × 12.25″ D

• Weight: ~45 lb (20.4 kg) each

• Finishes: Real wood veneers (cherry, sycamore, rosewood, black ash)

🧠 Summary

The Revel Performa M20 is revered among bookshelf speakers for its neutral tonal balance, high‑resolution midrange, and precision imaging. While not the most extended in bass among larger designs, its tight, articulate low end and transparent top end earn it a place in many serious hi‑fi systems and audiophile reviews. Whether used for two‑channel listening or as part of a home theater front stage, they remain respected classics in compact loudspeaker design.
