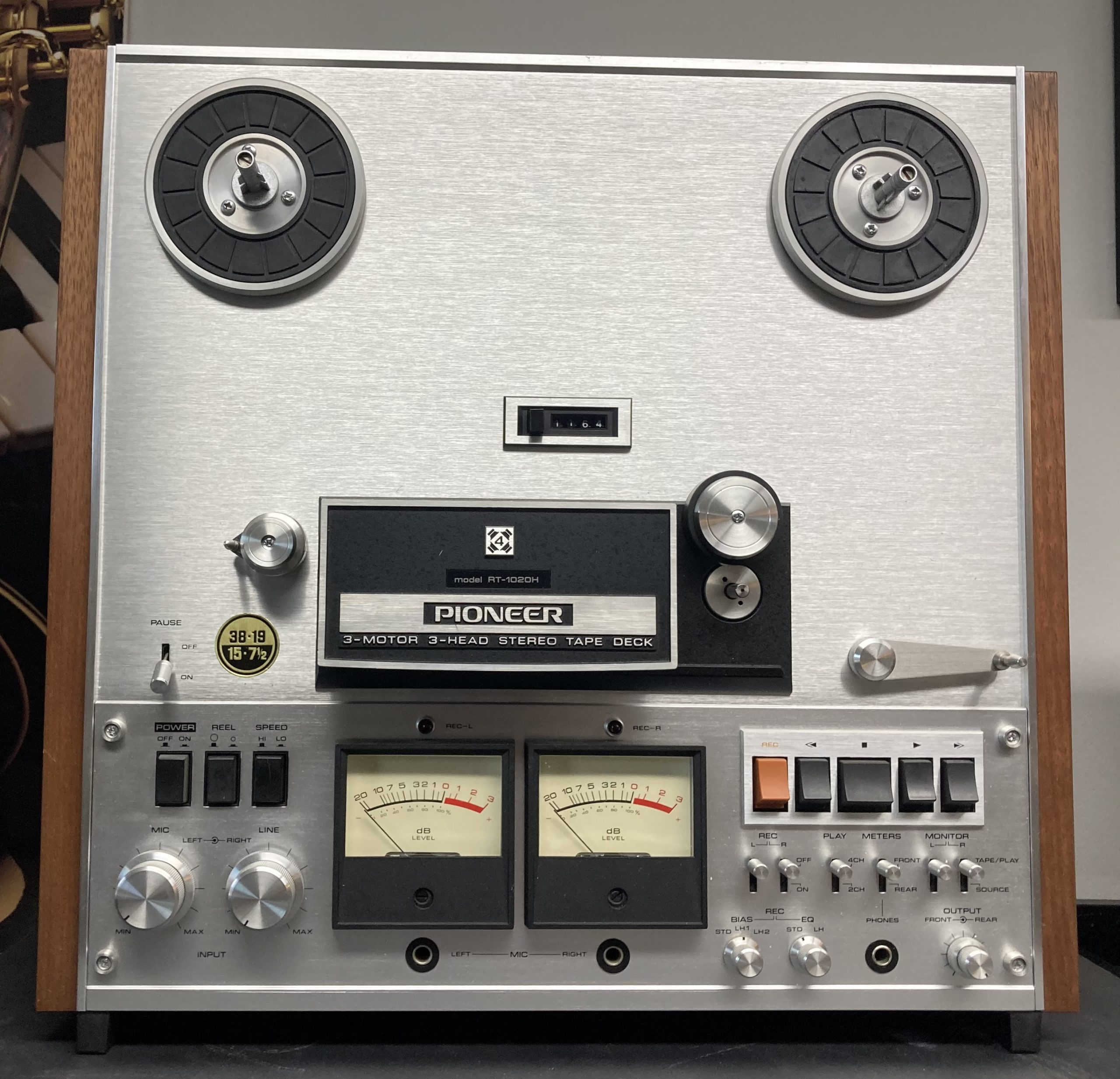

Pioneer RT-1020H Reel to Reel

Description

The Pioneer RT-1020H is one of the more ambitious open-reel tape decks of the 1970s, combining substantial mechanical construction, high-speed tape operation, three-motor transport, and four-channel playback capability. Introduced in the early 1970s and sold for approximately $650 in the United States, the RT-1020H was positioned as a premium machine for serious recording enthusiasts. Its walnut side panels and substantial aluminum front panel also give it the classic appearance associated with Pioneer’s better vintage components.

The “H” designation distinguishes this version from the standard-speed RT-1020. The RT-1020H operates at 7½ and 15 ips, making it particularly attractive for high-quality recording and playback. At 15 ips, Pioneer specified a frequency response of 30Hz–22kHz ±3dB and exceptionally low wow and flutter of 0.04% WRMS. At 7½ ips, response remains an impressive 40Hz–20kHz ±3dB, with wow and flutter rated at 0.08% WRMS.

Its transport employs three motors: two dedicated six-pole induction motors drive the reels while a two-speed hysteresis-synchronous motor drives the capstan. A substantial chassis and mechanically rigid mounting of the motor, heads and tape guides were intended to maintain stability and precision. Pioneer also incorporated three heads—a two-channel erase head, two-channel recording head, and a playback head capable of handling both two- and four-channel material.

One of the RT-1020H’s particularly interesting features is its four-channel playback capability. While recording is configured for two-channel stereo, the machine can reproduce four-channel tapes and provides front/rear output and level controls. This makes it considerably more versatile than a conventional stereo-only deck, especially for collectors of quadraphonic recordings.

Contemporary specifications were competitive with considerably more expensive machines. Signal-to-noise ratio was rated above 55dB, distortion below 1%, and channel separation above 50dB. The machine accepts reels up to 10½ inches and includes both line and microphone inputs, making it suitable for both mastering-style recording and conventional home use.

Modern owners continue to praise its construction and sound. One owner described it as “one of [the] best sounding decks out there,” while a vintage-audio forum contributor called the RT-1020H a “very well built” machine with “Super build quality.”

Today, the RT-1020H is particularly appealing to vintage-audio enthusiasts who appreciate substantial mechanical engineering and the distinctive sound of high-speed analog tape. It can still be an impressive performer and a handsome centerpiece for a serious vintage audio system.

Product Specifications

• Type: 3-motor, 3-head stereo reel-to-reel tape deck
• Track format: 2-channel recording; 2- and 4-channel playback
• Tape speeds: 7½ and 15 ips (19 and 38 cm/s)
• Reel capacity: Up to 10½-inch reels
• Heads: 2-channel erase, 2-channel record, 2/4-channel playback
• Motors: 2 reel-drive induction motors; 1 capstan motor
• Frequency response: 40Hz–20kHz ±3dB at 7½ ips; 30Hz–22kHz ±3dB at 15 ips
• Wow & flutter: 0.08% WRMS at 7½ ips; 0.04% WRMS at 15 ips
• Signal-to-noise ratio: Better than 55dB
• Distortion: Less than 1%
• Channel separation: Better than 50dB
• Crosstalk: Better than 60dB
• Bias frequency: 125kHz
• Line input: 50mV–25V / 100kΩ
• Microphone input: 0.25–80mV / 20kΩ
• Line output: 316mV / 50kΩ
• Dimensions: 17.3 × 17.0 × 8.9 inches
• Weight: Approximately 44 lb.
