iFi Audio Pro iDSD DAC

Here’s an authoritative overview of the iFi Audio Pro iDSD Signature—often simply referred to as the iFi Pro iDSD—a flagship‑class DAC, preamp, headphone amplifier, and music streamer that blends cutting‑edge digital conversion, flexible connectivity, and powerful analog output into one desktop‑sized unit.

Overview – iFi Audio Pro iDSD DAC / Music System

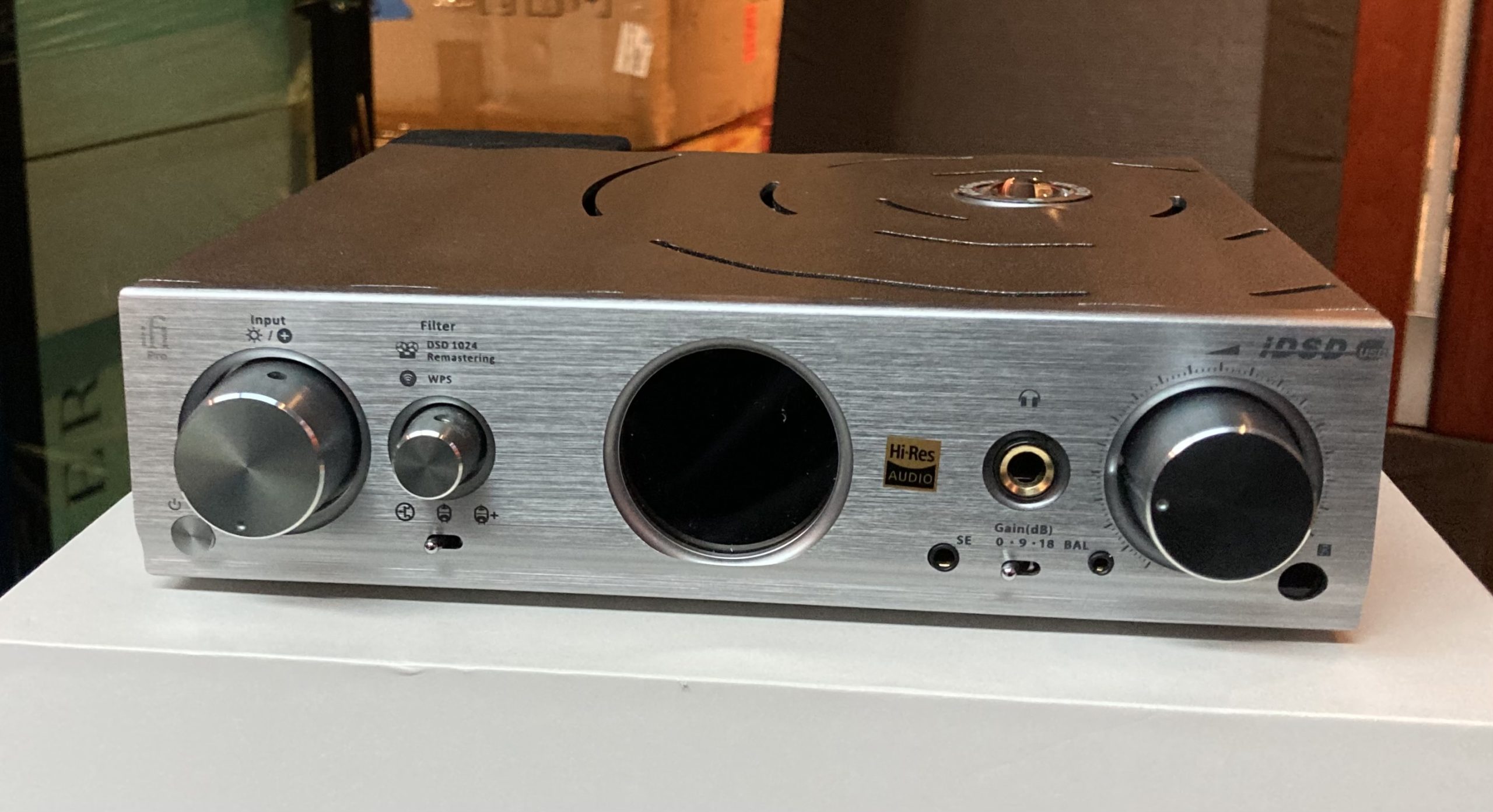

The iFi Pro iDSD is a high‑resolution digital‑to‑analog converter (DAC) designed to serve as the digital centerpiece of a serious hi‑fi or headphone‑centric system. It combines state‑of‑the‑art DAC circuitry, an advanced digital processing engine, balanced analog outputs, and a robust headphone amplifier—all housed in a well‑engineered aluminum chassis. What sets it apart from many DACs is its extensive format support, selectable digital filters, and studio‑grade re‑clocking and remastering features.

At the heart of the Pro iDSD is a quad‑stack Burr‑Brown DAC architecture, where four interleaved DACs (four pairs of differential elements per channel) work together to deliver superb resolution, low distortion, and rich detail across the audible range. The digital engine is powered by a Crysopeia FPGA platform and an XMOS XU216 USB controller, enabling not just high‑precision decoding but also DSD remastering up to DSD1024 and PCM up to 768 kHz—far beyond Red Book CD specifications.

Unlike simple DACs that only decode, the Pro iDSD offers multiple digital filter options including Bit‑Perfect, Bit‑Perfect+, Gibbs Transient Optimised, Apodising, and Transient Aligned. These let listeners tailor the sound character—from pure playback faithful to the source to more nuanced, filter‑shaped presentations—providing both technical performance and artistic flexibility.

The unit isn’t just for line‑level stereo systems: it includes a powerful built‑in headphone amplifier capable of driving demanding planar magnetic and high‑impedance dynamic headphones with >4,200 mW per channel balanced output and >1,575 mW single‑ended at 16 Ω. This level of drive lets it serve as a standalone desktop amp for a wide range of headphones, from sensitive IEMs to full‑size over‑ears.

Connectivity is equally generous: the Pro iDSD accepts USB for high‑res bitstreaming, AES3 (XLR), S/PDIF (coaxial/optical), BNC, Ethernet, Wi‑Fi, SD card, and USB memory playback. Outputs include balanced XLR and single‑ended RCA, with switchable gain settings that let it act as a preamp in larger stereo or multichannel systems.

Network‑capable streaming via Linkplay gives users integration with services like Spotify, TIDAL, Napster, and more, while AirPlay and DLNA support enable wireless playback from phones or NAS devices. That versatility—along with onboard MQA decoding—makes the Pro iDSD a true all‑in‑one digital hub for modern music lovers.

Sound and Impressions

Although mainstream reviews specifically for the Pro iDSD are limited, expert listeners and reviewers often highlight its expansive soundstage, deep bass control, and refined midrange transparency. Multiple sources note that its combination of carefully tuned digital filtering and robust analog stages yields a presentation that balances technical accuracy with musical engagement—avoiding the dryness of some precision DACs while preserving detail and dynamics.

Users in enthusiast communities often report that the Pro iDSD feels exceptionally “musical and expressive” compared with more neutral designs, with particular praise for its headphone section’s control and texture. Some owners point out that the volume control implementation—motorized and remote‑controllable—adds to its value as a centerpiece DAC/preamp without needing a separate controller.

Key Features

• Flagship desktop DAC / preamp / headphone amplifier system

• Quad‑stack Burr‑Brown DAC architecture (interleaved multi‑DAC design)

• Crysopeia FPGA digital engine with selectable filters

• PCM up to 768 kHz & DSD up to DSD1024; full MQA decoding

• Multiple digital inputs: USB, AES3 XLR, S/PDIF combo, BNC, Ethernet, Wi‑Fi, SD card

• Balanced XLR & RCA analog outputs

• Powerful headphone amplifier (>4,200 mW balanced output)

• Remote controllable volume and functions

• Linkplay streaming (Spotify, TIDAL, etc.) & AirPlay / DLNA support

Product Specifications

• DAC Architecture: Quad‑stack DAC (256 elements per channel)

• PCM Support: up to 768 kHz

• DSD Support: up to 49.152 MHz (DSD1024)

• MQA: Full MQA decoding

• Digital Inputs: USB, AES3 (XLR), S/PDIF (coaxial/optical), BNC

• Streaming: Ethernet & Wi‑Fi (Linkplay)

• Analog Outputs: Balanced XLR, Single‑ended RCA

• Headphone Outputs: 6.3 mm, 3.5 mm & 2.5 mm balanced

• Output Power: >4,200 mW balanced; >1,575 mW single‑ended (16 Ω)

• Volume Control: Motorized Alps potentiometer; IR remote

• Dynamic Range: ~119 dBA

• Dimensions: 213 × 220 × 63 mm

• Weight: ~1.98 kg

Summary:
The iFi Pro iDSD stands as a versatile powerhouse in the modern DAC landscape, blending high‑resolution decoding, flexible connectivity, powerful analog outputs, and advanced digital processing into a single unit. With its expansive format support, selectable sonic filters, and headphone performance, it serves both serious audiophiles and headphone enthusiasts alike—offering a body of features and sound quality normally found in separate high‑end components rather than one chassis.
