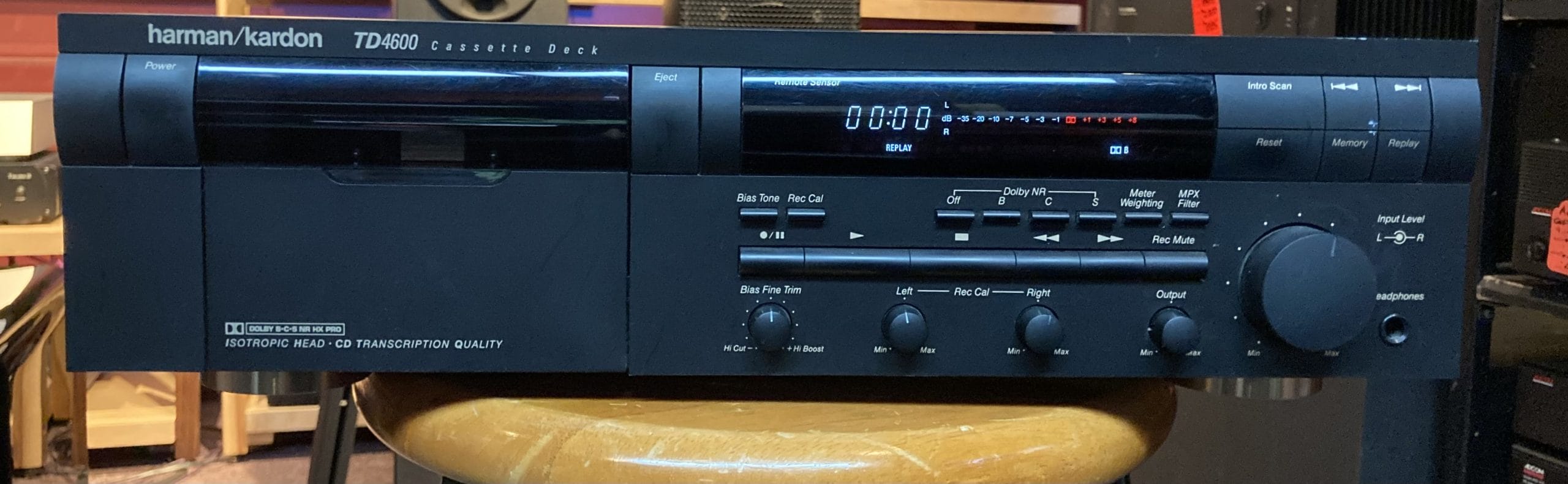

Harman Kardon TD4600 Cassette Deck

Description

The Harman Kardon TD4600 Cassette Deck is a transcription‑quality stereo cassette recorder/player from one of the most respected hi‑fi brands of its era. Introduced around 1990–1992, it sits near the top of Harman Kardon’s TD series and was one of the first decks in its class to incorporate the advanced Dolby S noise‑reduction system alongside Dolby B and Dolby C — a feature that made it stand out for both playback fidelity and recording quality in the waning days of the analog tape format.

At a time when cassette decks were reaching the peak of their technological refinement, the TD4600 offered excellent signal‑to‑noise performance, wide frequency response, and robust feature sets more often found in professional units than consumer decks. Its transcription designation implies a focus on accurate, noise‑free recording and playback, making it attractive both for serious home audio lovers and those using analog tape for archival or everyday listening.

The TD4600 uses a 2‑head design — one combined record/playback head and a separate erase head — and runs tapes at the standard 4.75 cm/s speed. It supports Type I (normal), CrO₂ (chrome), and metal tapes, with automatic tape–type detection that sets bias and equalization appropriately. This tape versatility, combined with Dolby S, was considered a major advantage for capturing and replaying dynamic audio sources with minimal hiss and distortion.

One hallmark feature is the Dolby S noise‑reduction circuitry. At the time of introduction, Dolby S was the most sophisticated consumer noise‑reduction format, providing deeper noise reduction and fuller frequency preservation than earlier Dolby B or C systems. It required substantial hardware support — the TD4600’s Dolby S electronics occupied a large dedicated board with multiple integrated circuits due to the state of semiconductor integration at the time.

User impressions from vintage stereo enthusiasts echo this technical strength. One classic review noted the “excellent build quality and impressive sound reproduction,” remarking that it performed well even compared with older Marantz decks when paired with high‑end playback systems. Another owner on a vintage gear forum called it “maybe the best grab I’ve ever had on vintage tape gear”, describing it as a strong performer alongside legacy Harman Kardon components.

In real‑world use, the TD4600’s fluorescent meters and level displays made setting recording levels intuitive, while features like intro scan, memory rewind/replay, and remote control added modern convenience to traditional analog tape operation.

Today, the TD4600 is appreciated by collectors and tape lovers for its robust construction, reliable operation, and musical performance. It can deliver smooth, wide‑band sound and deep noise reduction that still impresses with analog sources decades after its heyday.

Key Specifications

• Type: 2‑head, single compact cassette deck (“Transcription Quality”)

• Track System: 4‑track / 2‑channel stereo

• Tape Speed: 4.75 cm/s (standard)

• Head Configuration: 1 × record/playback head; 1 × erase head

• Noise Reduction Systems: Dolby B, Dolby C, Dolby S

• Headroom Extension: Dolby HX Pro

• Tape Types Supported: Type I (Normal), CrO₂ (Chrome), Metal

• Signal‑to‑Noise Ratio: ~74 dB (with Dolby S)

• Wow & Flutter: ~0.045 % (typical)

• Total Harmonic Distortion: ~1.1 %

• Inputs/Outputs: Standard line‑level RCA I/O

• Display: Four‑digit fluorescent tape counter and level meters

• Functions: Memory rewind/replay, intro scan, remote control capability

• Dimensions: ~442 × 126 × 320 mm

• Weight: ~6.7 kg

• Power Consumption: ~31 W

• Country of Manufacture: Japan

Bottom Line

The Harman Kardon TD4600 Cassette Deck stands as one of the more capable and refined cassette machines of its era, blending excellent noise reduction, versatile tape support, and thoughtful features in a robust chassis. For collectors and analog enthusiasts looking for high‑quality tape playback and recording, it remains a sought‑after classic.
