Harman Kardon Citation One Vintage Preamp

Description

The Harman Kardon Citation I Stereo Preamplifier (often written as Citation One) is a legendary vacuum-tube control center introduced by Harman Kardon in the late 1950s. Designed by noted engineer Stewart Hegeman, the Citation I was part of the company’s celebrated Citation series of high-fidelity components and was widely regarded as one of the most advanced preamplifiers of its time. Combining a sophisticated tube circuit, a highly flexible phono stage, and extremely wide bandwidth, the Citation I helped define the standard for high-end preamplifiers during the golden age of hi-fi.

Overview

The Citation I was conceived as a full-featured stereo control center capable of handling multiple sources, including phono cartridges, tape machines, tuners, and auxiliary inputs. At a time when vinyl playback dominated home audio systems, Harman Kardon engineered the Citation I with a particularly sophisticated phono section designed to reproduce records with exceptional accuracy.

The preamplifier employs an all-tube architecture with fourteen vacuum tubes, including nine 12AX7 (ECC83) and five 12AT7 (ECC81) tubes. These tubes handle amplification, equalization, and buffering duties within the circuit, delivering the warmth and dynamic presentation associated with classic tube electronics.

One of the defining aspects of the design is its extremely wide bandwidth. Harman Kardon engineered the circuitry to remain flat across a range far beyond the limits of human hearing, allowing the audible band to remain free from phase anomalies and distortion. The preamp’s frequency response extends from approximately 5 Hz to 80 kHz, an impressive specification for a component developed in the early days of stereo hi-fi.

Another unique feature is the Citation I’s multiple equalization and roll-off settings for phono playback. During the early era of vinyl records, different record labels used different equalization curves. The Citation I provides a large number of selectable combinations so listeners could properly match the playback curve to the record being played.

To maintain signal purity, each amplification stage in the preamplifier is surrounded by carefully designed feedback loops. This engineering approach reduces distortion and phase shift while maintaining stability and wide bandwidth performance.

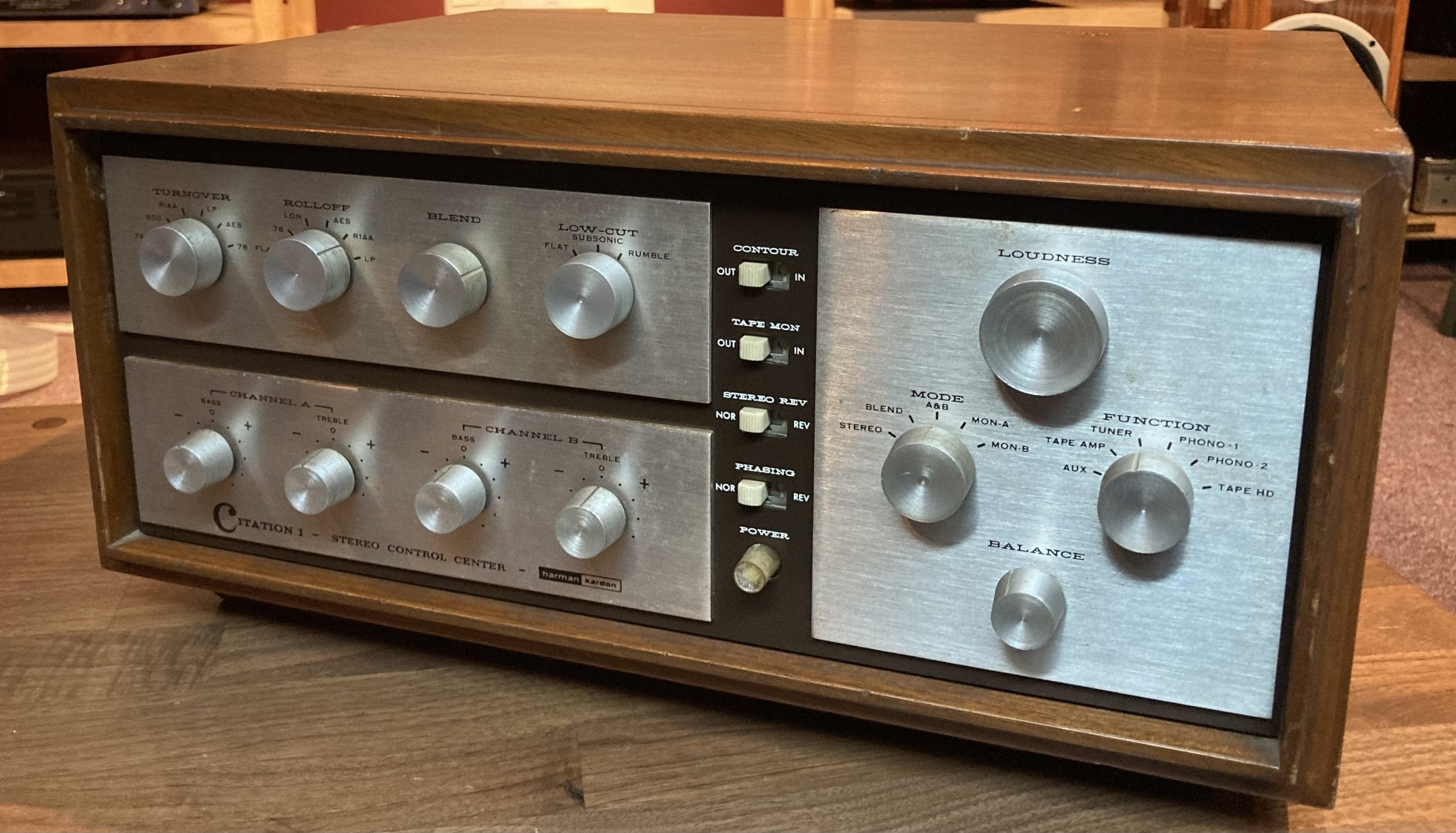

Physically, the Citation I features the distinctive gold-and-brown faceplate styling characteristic of the Citation series, often paired with an optional walnut cabinet. The layout of its controls was designed for logical operation, grouping related functions together for intuitive use.

Sound and Review Impressions

The Citation I has remained highly respected among vintage audio enthusiasts for decades due to its musical presentation and excellent phono performance.

One user review notes that the preamp’s phono stage produces “the best sound stage” the reviewer had heard, adding that it allows listeners to enjoy music “for hours on end without fatigue.”

Audio restorers and collectors also praise the design for its engineering sophistication. One restoration specialist described it as “the flagship of the Harman Kardon line” and noted that when properly rebuilt it can compete with many modern high-end components.

Many enthusiasts attribute the Citation I’s enduring reputation to its combination of wide bandwidth, carefully engineered feedback networks, and a highly flexible phono stage—features that were remarkably advanced for its time.

Key Features

• Classic vacuum-tube stereo preamplifier design

• Designed by audio engineer Stewart Hegeman

• Advanced phono stage with multiple equalization curves

• Extremely wide bandwidth circuit topology

• Feedback-controlled amplification stages for low distortion

• Separate stepped bass and treble tone controls

• Scratch filter and roll-off options for record playback

• Distinctive Citation-series industrial design

Product Specifications

• Type: Vacuum-tube stereo preamplifier

• Frequency Response: 5 Hz – 80 kHz

• Total Harmonic Distortion: approx. 0.05%

• Signal-to-Noise Ratio: ~85 dB (line input)

• Input Sensitivity: 2.5 mV (MM), 100 mV (ceramic), 200 mV (line)

• Output Level: 300 mV line / up to 2 V pre-out

• Tube Complement: 9 × 12AX7 (ECC83), 5 × 12AT7 (ECC81)

• Dimensions: approx. 14.9 × 12.3 × 6 in

• Weight: approx. 23 lb

• Finish: Gold/brown faceplate with optional walnut cabinet

Summary:
The Harman Kardon Citation I stands as one of the most influential tube preamplifiers of the early stereo era. With its sophisticated phono equalization system, extremely wide bandwidth, and carefully engineered tube circuitry, it helped establish Harman Kardon’s reputation for advanced audio engineering. Even decades after its introduction, the Citation I remains a prized component among vintage hi-fi collectors and audiophiles seeking classic tube sound and historical significance.
