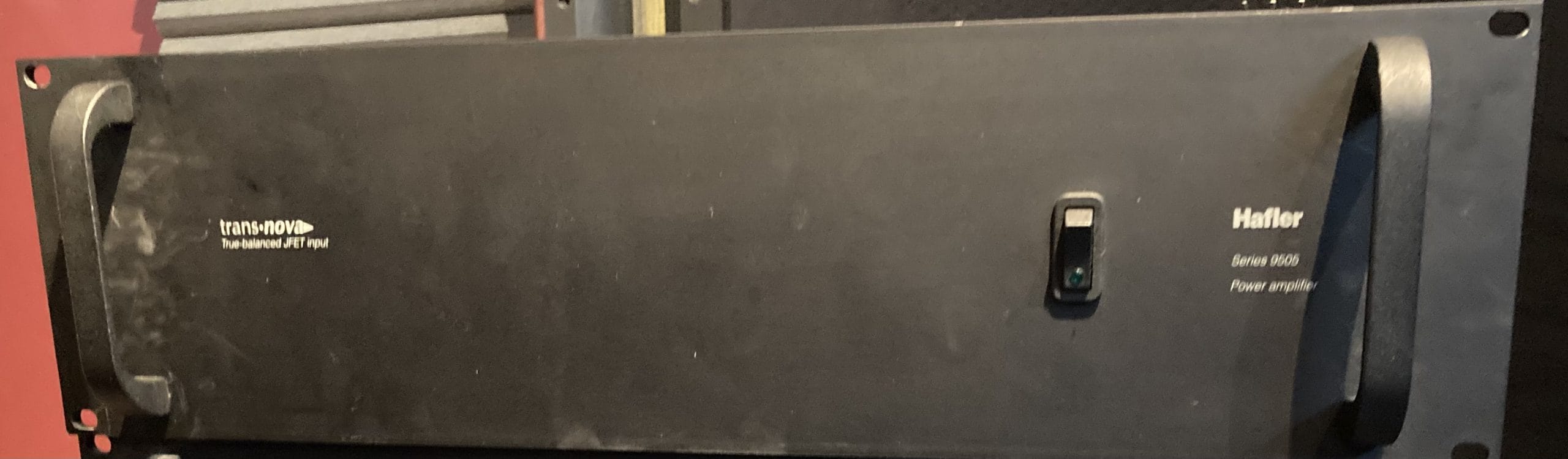

Hafler 9505 Power Amp

Description

The Hafler 9505 Trans‑Nova Power Amplifier is a classic high‑power stereo amplifier from the storied American audio brand Hafler, renowned for its rugged engineering and musical sound. Designed and built in the USA in the 1990s, the 9505 sits at the top of Hafler’s Trans‑Nova line, combining innovative circuitry with generous power delivery for demanding loudspeaker loads and serious listening environments.

At its core, the 9505 uses Hafler’s Trans‑Nova amplifier topology with all‑discrete circuitry, a JFET front end, and MOSFET output devices to deliver robust, dynamic performance with low noise and distortion. The interior design also incorporates a “DIAMOND” driver stage, which blends the low‑distortion linearity reminiscent of Class A operation with the high current capability of Class B — a hybrid approach intended to yield refined sound without sacrificing control or power.

Performance specs on the 9505 are impressive even by modern standards. The amplifier is rated at 250 watts per channel into 8 Ω, 375 watts into 4 Ω, and 750 watts in bridged‑mono at 8 Ω, giving it the muscle to drive large floorstanders and low‑efficiency speakers with authority. Its full‑power bandwidth extends from 0.15 Hz to 300 kHz, and a high damping factor ensures tight bass control and stable driver damping over a wide range of frequencies.

In typical stereo configuration, the 9505’s balanced JFET input stage provides excellent noise rejection and dynamic headroom. Balanced XLR or 1/4″ TRS connectors are supported alongside gold‑plated RCA inputs for unbalanced sources, while heavy duty 5‑way binding posts accommodate direct speaker connections. A rear panel switch even allows for bridged‑mono operation when maximum single‑channel power is required in large systems.

Despite the high power output, the design remains stable and conservative. The amplifier is cooled via large heat‑sinks and convection (no fan), minimizing noise and moving parts, and the rugged steel/rackmount chassis weighs in at about 50 lb. While its no‑nonsense aesthetic may look utilitarian, users historically praise the component for its reliable build quality and longevity — traits often cited in vintage audio circles as part of Hafler’s enduring appeal.

Sonic Character & Use Cases

While contemporary reviewers of the 9505 are limited, long‑time owners and vintage gear enthusiasts often highlight its musicality, dynamic control, and capability with demanding speakers. On message boards and in resale listings, it’s described as delivering a “warm, powerful, and natural sound” that bridges the gap between vintage Class AB punch and more refined touring amps. Its ability to maintain composure at high output has made it a favorite for larger listening rooms and home theater fronts.

Owners frequently pair the 9505 with passive preamps or home‑grown tube preamps to combine the amplifier’s power and control with the smoothness associated with high‑end analog front ends. While some vintage amplifiers of the era prized ultra‑low distortion measurements, the Hafler’s hybrid design tends to sound more engaging in real‑world listening, a trait often noted by enthusiasts who prefer “musical fidelity” over lab figures alone.

Overall, the Hafler 9505 remains a sought‑after classic amplifier for collectors and audiophiles seeking a powerful, built‑to‑last stereo amplifier that delivers clean, full‑range sound without excessive coloration or fragility.

Key Specifications

• Type: Stereo / bridged‑mono power amplifier

• Topology: Trans‑Nova with all‑discrete circuitry & DIAMOND driver stage

• Power Output:

  • 250 W/Ch @ 8 Ω (stereo)

  • 375 W/Ch @ 4 Ω (stereo)

  • 750 W @ 8 Ω (bridged mono)

• Total Harmonic Distortion: <0.1 % THD (typ. 0.005 % at 1 kHz)

• Frequency Response: ~20 Hz – 20 kHz ±0.1 dB; full power 0.15 Hz – 300 kHz

• Signal‑to‑Noise Ratio: 100 dB A‑weighted

• Slew Rate: 150 V/µs

• Gain: +29 dB maximum

• Damping Factor: 1000 @ 1 kHz

• Input Impedance: 47 kΩ balanced

• Inputs: Balanced XLR / 1/4″ TRS, unbalanced RCA

• Outputs: Heavy‑duty 5‑way binding posts

• Cooling: Convection (no fan)

• Power Consumption: Approx. 160 W idle, up to 840 W maximum

• Dimensions: 19″ W × 12.5″ D × 5.25″ H (3U rack)

• Weight: ~50 lb / 22.7 kg
