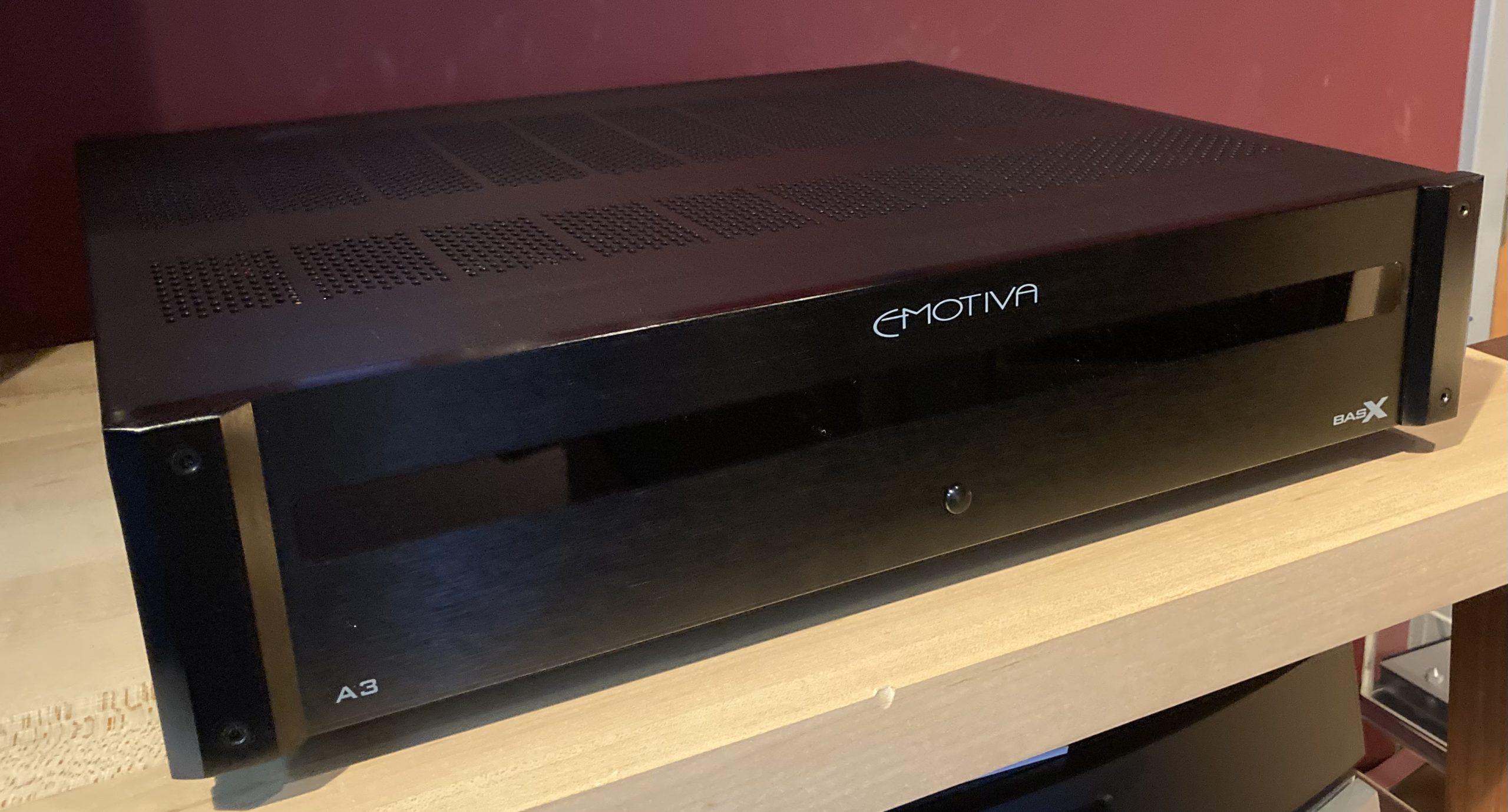

Emotiva BasX A3 3-channel Amp

Description

The Emotiva BasX A3 is a three-channel Class A/B power amplifier designed to deliver substantial, clean power to the front left, center, and right speakers in a home theater or high-performance stereo system. As part of Emotiva’s highly regarded BasX Series, the A3 combines traditional linear power supply design with modern protection circuitry and audiophile-grade components, offering performance that far exceeds what its modest price might suggest. It has become one of the most popular choices for enthusiasts looking to upgrade from the internal amplifiers found in most A/V receivers.

Rated at 140 watts per channel into 8 ohms with all three channels driven and 200 watts per channel into 4 ohms, the BasX A3 provides the current reserve needed to drive demanding loudspeakers with authority. Rather than relying on lightweight switching power supplies, Emotiva equips the amplifier with a heavy-duty toroidal transformer and a substantial linear power supply. Combined with a high-current Class A/B output stage, the design delivers effortless dynamics, excellent speaker control, and low distortion across the audible frequency range.

One of the A3’s greatest strengths is its ability to relieve an A/V receiver of its most demanding workload. By powering the front three channels externally, an AVR can devote its internal resources to surround and height speakers, often resulting in greater overall system headroom, improved dialogue clarity, and more consistent performance during demanding movie soundtracks. The BasX A3 is equally at home in a dedicated 3.1-channel system, where its generous power reserves allow speakers to perform to their full potential.

Emotiva designed the BasX A3 with simplicity and reliability in mind. Standard RCA inputs ensure compatibility with virtually any processor or receiver equipped with preamp outputs, while robust five-way binding posts accommodate banana plugs, spade lugs, or bare wire. A 12-volt trigger input and output enable seamless integration into automated home theater systems. Internally, microprocessor-controlled protection circuitry continuously monitors temperature, short circuits, and fault conditions without affecting sound quality during normal operation.

Sonically, the BasX A3 offers a neutral and dynamic presentation. Its low-noise design contributes to a silent background, allowing subtle musical details and movie ambience to emerge naturally. Bass reproduction is firm and well controlled, while the midrange remains open and articulate. High frequencies are smooth rather than aggressive, making the amplifier an excellent partner for both revealing audiophile loudspeakers and more forgiving home theater systems. The amplifier’s high damping factor also helps maintain excellent woofer control, contributing to tight, accurate bass.

Owners and reviewers alike have praised the BasX A3 for delivering performance typically associated with considerably more expensive amplifiers. Home theater reviewer Youthman described the BasX Series as “setting the bar for budget HiFi amplifiers,” noting its impressive combination of clean power, low operating temperature, and exceptional value. Community feedback has been similarly enthusiastic, with many users reporting noticeably cleaner dialogue, improved bass control, and reduced listening fatigue after moving their front speakers from an AVR to the BasX A3.

For enthusiasts seeking an affordable yet genuinely high-performance external amplifier, the Emotiva BasX A3 remains one of the standout values in home audio. Its combination of robust Class A/B amplification, quality construction, and straightforward operation makes it an excellent foundation for both music and movie systems.

Review Quotes

• “Setting the bar for budget HiFi amplifiers.” — Youthman / CommunityAV
• “Designed first and foremost to sound great in all types of audio systems with all types of music.” — Emotiva
• “Great sounding Class A/B output stage… without a trace of harshness or strain.” — Emotiva

Specifications

• Type: Three-channel power amplifier
• Amplifier Class: Class A/B
• Power Output (All Channels Driven): 140 watts x 3 into 8Ω (20 Hz–20 kHz)
• Power Output (4Ω): 200 watts x 3 (1 kHz)
• Frequency Response: 10 Hz – 80 kHz (+0/-1.8 dB); 20 Hz – 20 kHz ±0.02 dB at rated power
• THD+N: <0.02%
• Signal-to-Noise Ratio: >112 dB (A-weighted)
• Damping Factor: >500
• Input Sensitivity: 1.25 V
• Voltage Gain: 29 dB
• Input Impedance: 27 kΩ
• Minimum Speaker Impedance: 4Ω
• Inputs: 3 × RCA unbalanced
• Speaker Outputs: Heavy-duty five-way binding posts
• Trigger Connections: 12V trigger input and output
• Power Supply: Oversized toroidal transformer with linear power supply
• Protection: Microprocessor-controlled thermal, short-circuit, and fault protection
• Dimensions (W × H × D): 17 × 4 × 15.5 in. (432 × 103 × 394 mm)
• Weight: 25 lb (11.3 kg)
• Finish: Black steel chassis with brushed aluminum faceplate
