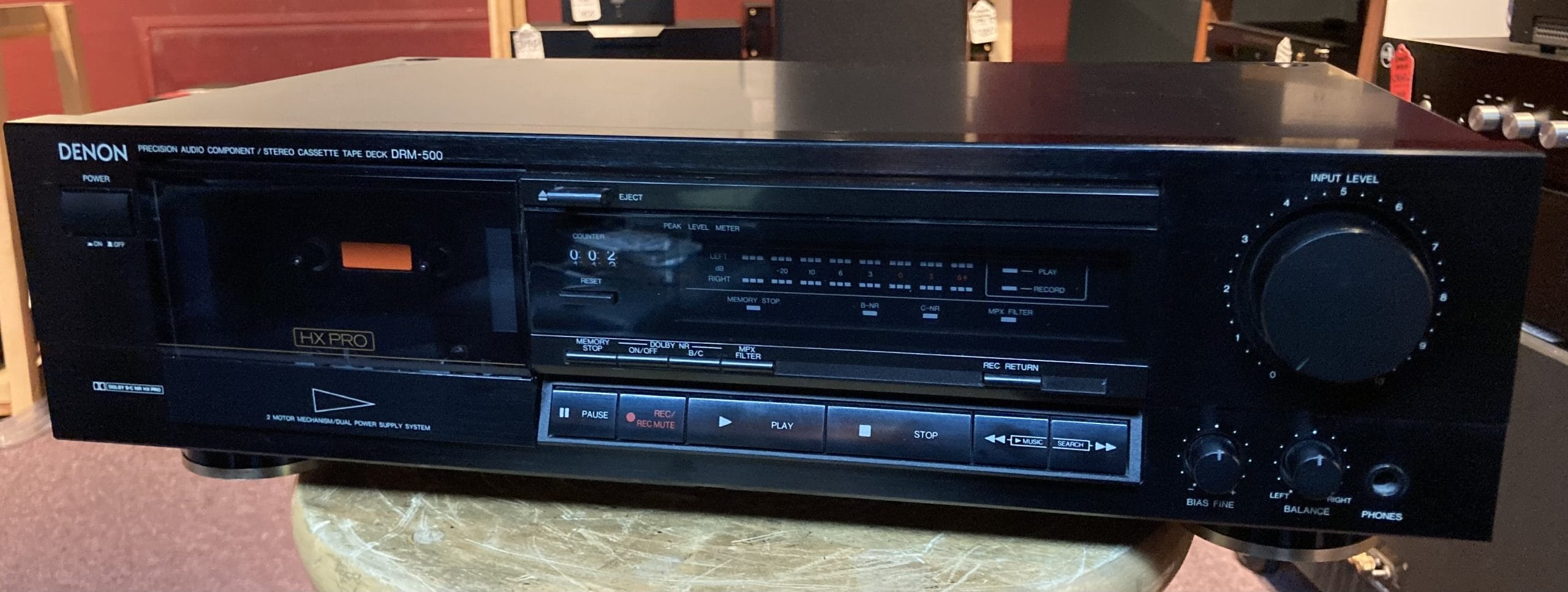

Denon DRM-500 Cassette Deck

Description

The Denon DRM‑500 is a vintage stereo cassette deck introduced in 1989 and produced through the early 1990s, positioned as a solid mid‑range analog tape deck for audiophiles and home recording enthusiasts. Combining functional simplicity with quality analog performance, this deck is admired today for its warm sound, versatile tape handling, and reliable mechanical transport—attributes that make it a strong candidate for playback, recording, and even digitization of classic analog tape collections.

Built around a 2‑head, single‑well mechanism, the DRM‑500 offers dependable performance for both playback and recording on all major cassette tape formats: Type I (normal), CrO2 (chrome), and Metal tapes. The standard 4‑track, 2‑channel stereo system and a fixed tape speed of 4.8 cm/s reflect the classic specifications of consumer and hi‑fi decks of its era, delivering well‑balanced sound reproduction when paired with a suitable amplifier and speakers.

A key strength of the DRM‑500 is its dual noise‑reduction system—support for both Dolby B and Dolby C—which significantly reduces tape hiss and background noise during playback and recording. Dolby C, in particular, offers up to 20 dB of noise reduction above about 1 kHz, helping preserve quiet passages without introducing noticeable artifacts.

In addition to classic Dolby NR, the deck incorporates HX Pro headroom extension, a technology designed to improve high‑frequency linearity and reduce distortion during recording. HX Pro adjusts bias dynamically to match tape conditions, expanding dynamic range and providing more faithful recordings—a valuable feature for those capturing music or spoken content from external sources onto tape.

Mechanically, the DRM‑500 employs a single capstan drive with reel motor, yielding smooth tape transport and low wow‑and‑flutter figures (~0.055 %), which contributes to stable pitch and timing during playback. Its frequency response extends from roughly 25 Hz to 18 kHz on Metal tapes, delivering a wide enough bandwidth for music reproduction with good presence and detail.

The front panel offers full logic transport controls, including play, stop, fast forward, rewind, and record buttons, as well as a mechanical 3‑digit tape counter with memory stop. While the VU metering is basic—often utilitarian LED peak‑level indicators rather than more precise analog meters—the controls are responsive and reliable with a satisfying tactile feel.

Connectivity includes RCA line‑level inputs and outputs for interfacing with amplifiers, integrated receivers, or recording sources, and a microphone input (80 mV) for direct recording or dubbing from external gear. Some owners also note the inclusion of an MPX filter to prevent unwanted stereo multiplex pilot tones (like the 19 kHz signal from FM broadcast) from interfering with noise reduction circuits—a thoughtful touch for those using the deck with radio sources.

Physically, the DRM‑500 is built with a sturdy metal chassis typical of late‑1980s hi‑fi components, and it fits well into typical stereo racks and systems. Many surviving examples are still in use thanks to robust construction and the ability to service or replace belts and rollers as needed.

Today, the Denon DRM‑500 is appreciated not only by vintage audio collectors but also by people looking to digitize old tapes, enjoy classic analog charm, or complement a retro audio setup. Its wide tape compatibility, noise reduction features, and stable transport make it a balanced and versatile cassette deck for both playback and recording duties.

Review Quotes

• “Warm analog sound and reliable transport make this deck a good choice for vintage systems.” — period listing description.

• “Dolby B and C plus HX Pro headroom extension deliver clearer playback and recordings.” — product feature overview.

• “Wide tape compatibility (Type I, CrO2, Metal) with stable mechanics and good frequency range.” — technical summary from vintage specs.

Key Specifications

• Component Type: Stereo cassette deck (single‑well, 2‑head)

• Model: Denon DRM‑500

• Production Years: 1989 – 1991

• Made in: Japan

• Track System: 4‑track, 2‑channel stereo

• Tape Speed: 4.8 cm/s

• Heads: 1 × record/playback, 1 × erase

• Noise Reduction: Dolby B, Dolby C

• Headroom Expansion: HX Pro

• Frequency Response: 25 Hz – 18 kHz (Metal tape)

• Signal‑to‑Noise Ratio: 72 dB (with Dolby C)

• Wow & Flutter: 0.055 %

• Inputs: 80 mV (line), 80 mV (mic)

• Outputs: 0.775 V (line)

• MPX Filter: Yes (helps accurate Dolby processing)

• Transport Controls: Logic control, memory tape counter

• Headphones: Yes (front jack)

• Dimensions (W × H × D): ~434 × 125 × 275 mm

• Weight: ~3.9 kg

• Finish: Black (typical)
