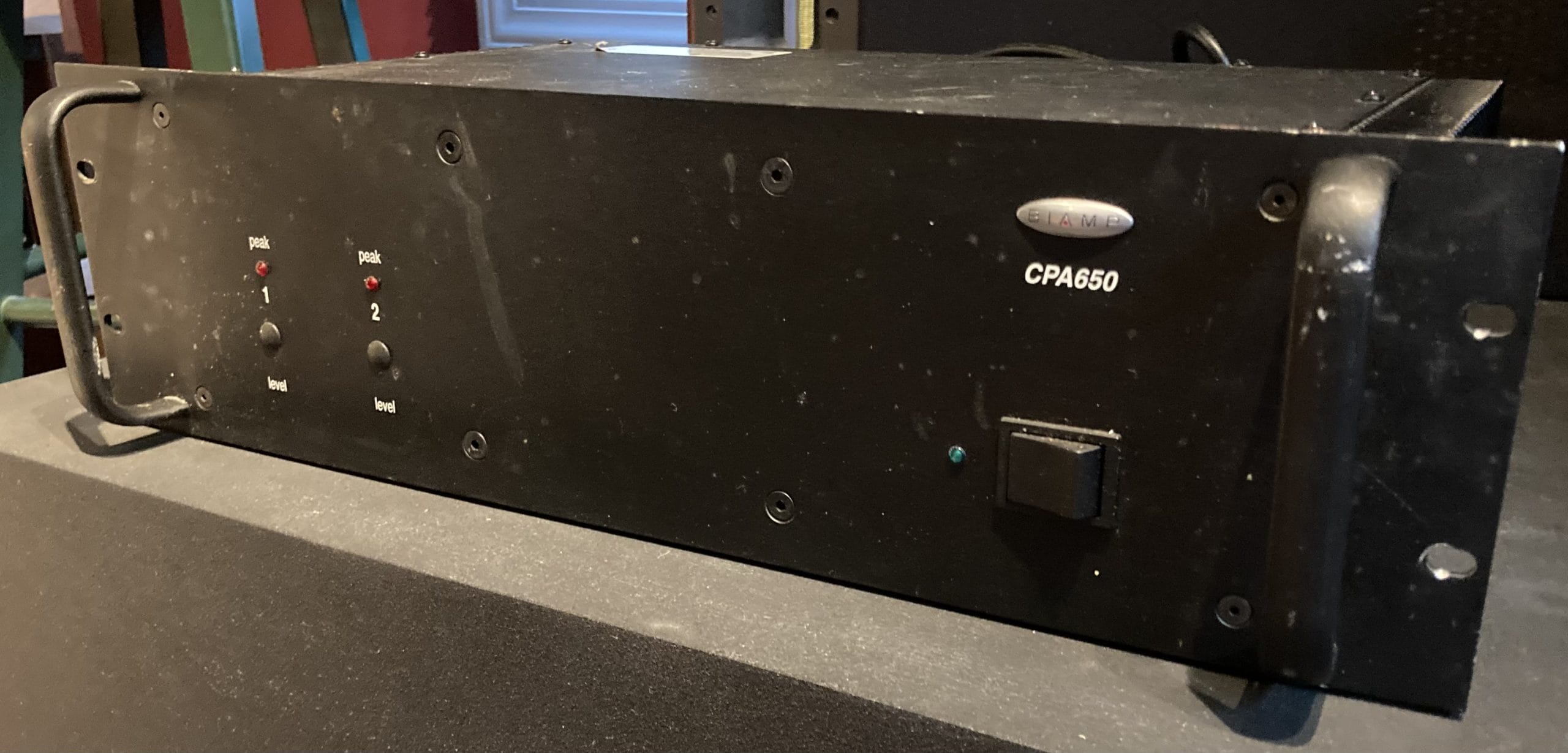

The Biamp CPA650 is a dual‑channel professional power amplifier originally designed for commercial and installed audio applications such as background music systems, paging, classrooms, houses of worship, and corporate AV racks. Unlike consumer stereo amps, the CPA650 emphasizes reliability, robust engineering, and long‑term duty performance, with protection circuits and features geared toward permanent installations rather than hi‑fi listening at home.
Built by Biamp Systems — a company with decades of presence in commercial AV, DSP, and installation‑grade audio gear — the CPA650 delivers substantial power and a conservative, no‑frills design that prioritizes dependable operation, minimal maintenance, and straightforward connectivity. Despite being discontinued, it remains popular on the used market because of its solid build, passive cooling (no fan noise), and straightforward performance.
At its core, the CPA650 provides 325 W per channel into 4 Ω and 200 W per channel into 8 Ω in stereo mode, with the ability to be bridged to a single channel for up to 650 W into 8 Ω — all at professional realtime power ratings. This makes it suitable for driving mid‑ to large‑sized commercial loudspeakers or even passive subwoofers in distributed audio environments.
Its construction reflects Biamp’s focus on long life and low‑maintenance service: the amp is passively cooled with large heat sinks, eliminating the need for fans that can fail over time. Complete thermal, overload, and short‑circuit protection with automatic reset helps ensure the amplifier continues operating in demanding scenarios without needing frequent intervention. Balanced inputs via barrier strip terminals and 5‑way binding post outputs provide reliable, installer‑friendly connectivity.
Unlike typical home audio amplifiers, professional units like the CPA650 don’t tend to have subjective “tone” reviews from hi‑fi magazines; instead, feedback from tech integrators and installers centers on performance reliability and power delivery. Some technical observers note that the CPA650 is designed for clean power rather than high‑fidelity reproduction, which fits its role driving background systems, paging systems, and distributed loudspeakers rather than high‑end stereo listening.
In practical use, installers appreciate features such as detented level controls (which can be mounted on the front or rear), recessed ground lift to eliminate hum, mono‑bridge selectable operation, and peak output indicators that help with setup and monitoring. These features aren’t flashy, but they help keep installation time and troubleshooting low — critical in commercial projects where reliability and uptime matter.
Today, the CPA650 remains a workhorse choice for AV technicians and installers looking for reliable mains power amplification in commercial environments, from restaurants and retail spaces to community centers and houses of worship. While it’s not tailored for home audio purity, its robust performance, protection features, and rugged design have kept it in circulation long after it was discontinued.
Key Specifications
Type: Dual‑channel commercial power amplifier (rack mountable, professional)
Power Output (Stereo Mode): 325 W per channel into 4 Ω
Power Output (Stereo): 200 W per channel into 8 Ω
Mono‑Bridged Power: 650 W into 8 Ω
Signal‑to‑Noise Ratio: ~98 dB (rated power into 8 Ω)
Total Harmonic Distortion (THD + Noise): < 1 % (20 Hz–20 kHz @ rated power)
Frequency Response (Stereo): ±0.5 dB from 20 Hz to 20 kHz
Input Impedance: Balanced ~20 kΩ; Unbalanced ~10 kΩ
Sensitivity: ~1 Vrms (2.2 dBu)
Protections: Thermal, short‑circuit, overload with auto reset
Cooling: Passive (no fan) – convection cooled
Connectors: Balanced barrier strip inputs; 5‑way binding post speaker outputs
Controls: Detented level controls (mountable at front or rear); recessed ground lift; recessed mono‑bridge switch
Safety & Compliance: CE marked, UL listed; covered by Biamp’s 5‑year warranty (when new)
Power Requirements: 120/220 VAC, 50/60 Hz
Dimensions: ~19″ W × 5.25″ H × 11″ D (3 RU)
Weight: ~33 lb (15 kg)
Bottom Line: The Biamp CPA650 Power Amplifier isn’t a consumer hi‑fi product — it’s a professional installation power amp engineered for reliability, power, and minimal maintenance in commercial AV environments. Its rugged feature set, protection circuits, and broad power delivery have earned it a reputation as a solid choice for integrators and technicians seeking dependable amplification for distributed audio and installed sound projects.
