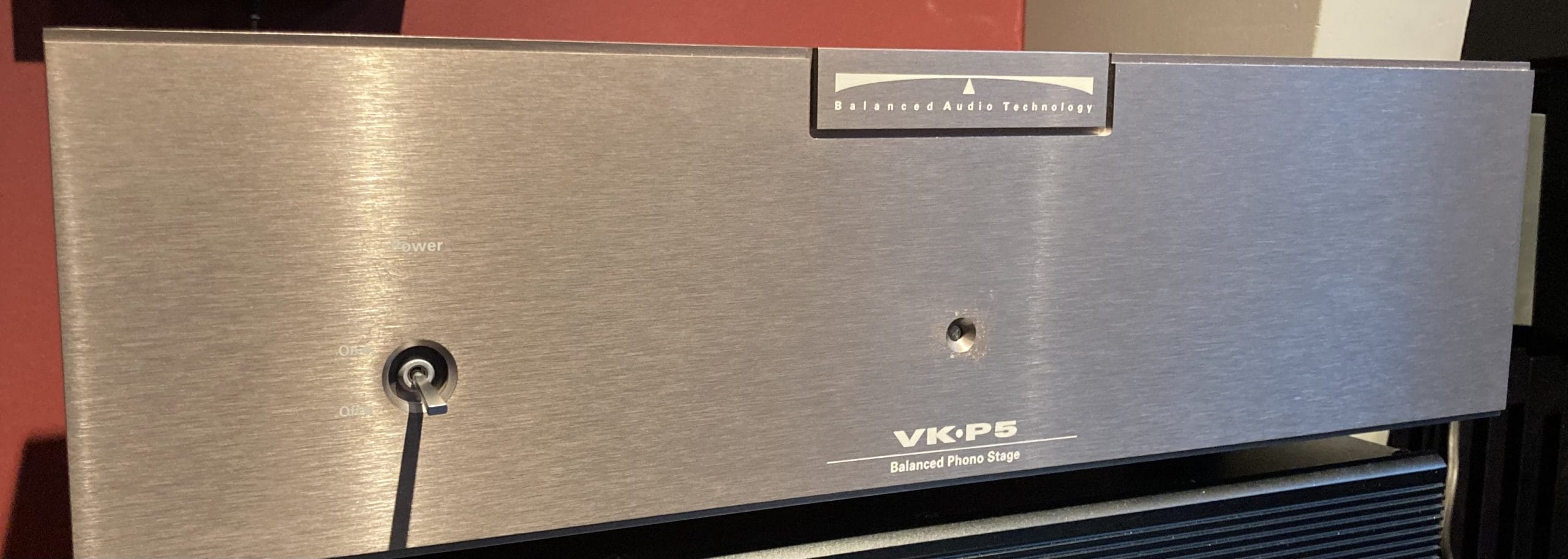

Balanced Audio Technology VKP5 Phono Preamp

Description

The Balanced Audio Technology VK‑P5 Phono Preamplifier is a high-quality vacuum-tube phono stage designed to extract the delicate signals produced by a turntable cartridge and bring them up to line-level with minimal noise and maximum musical fidelity. Introduced by Balanced Audio Technology (BAT), the VK-P5 represents an entry point into the company’s line of dedicated phono stages while retaining many of the design principles that define BAT’s higher-end components. Known for its robust construction, fully tube-based signal path, and flexible cartridge loading options, the VK-P5 became a respected option for audiophiles seeking a stand-alone phono stage for vinyl playback systems.

Overview

The VK-P5 is an all-tube phono preamplifier designed specifically for moving-magnet and high-output moving-coil cartridges. In a vinyl playback system, the phono stage performs two critical tasks: amplifying the extremely low output of the cartridge and applying the RIAA equalization curve required to restore the tonal balance of the original recording.

BAT designed the VK-P5 around a fully balanced topology, a core philosophy of the company’s electronics. Balanced circuits can reduce noise and improve signal integrity by processing both halves of the audio waveform symmetrically. While the VK-P5 uses RCA inputs, its output stage is balanced via XLR connectors, making it an ideal partner for balanced preamplifiers and power amplifiers in high-end systems.

Internally, the VK-P5 uses a substantial complement of vacuum tubes—eight 6922 dual-triodes and two 6SN7 tubes—to amplify the tiny phono signal while maintaining the harmonic richness and spatial depth associated with tube designs. These tubes are rated for approximately 5,000 hours of operation, providing long service life before replacement is necessary.

Flexibility is another defining feature of the VK-P5. The unit provides adjustable cartridge loading, allowing users to match the electrical characteristics of their phono cartridge. Both resistive loading (100Ω to 47kΩ) and capacitive loading (100pF to 1000pF) can be selected internally to optimize performance. This flexibility allows the VK-P5 to work with a wide range of cartridges and tonearms.

BAT also included adjustable gain settings, enabling the user to choose between two gain levels depending on cartridge output and system sensitivity. Fine-tuning controls can also be used to compensate for channel balance differences between cartridges, ensuring precise stereo imaging.

Physically, the VK-P5 reflects BAT’s reputation for solid engineering. Its large chassis and heavy power supply give it the appearance of a power amplifier rather than a small accessory component.

Sound and Review Impressions

The VK-P5 has been described as a musically engaging phono stage with strong resolution and quiet operation for a tube design.

A review from Tone Publications noted that the unit was “a joy to listen to,” praising its ability to deliver impressive resolution while maintaining tonal neutrality.

The same evaluation highlighted the unit’s low noise floor and refined presentation, stating that the phono stage remained “tonally neutral and very quiet” even when used in single-ended mode.

Some reviewers have also noted that the VK-P5’s sound is smooth and balanced across the frequency spectrum, emphasizing musical coherence rather than analytical detail. This character aligns with BAT’s traditional sonic philosophy of combining tube warmth with controlled, well-defined dynamics.

Key Features

• Fully tube-based phono stage design

• Balanced output stage for reduced noise

• Adjustable gain settings for cartridge matching

• User-selectable resistive and capacitive cartridge loading

• Automatic output muting during startup

• Internal gain trim controls for fine system matching

• Heavy-duty chassis and power supply design

• Compatible with moving-magnet and high-output moving-coil cartridges

Product Specifications

• Type: Vacuum-tube phono preamplifier

• Gain: 50 dB (Low) / 56 dB (High)

• Signal-to-Noise Ratio: 71–73 dB (A-weighted)

• Tube Complement: 8 × 6922, 2 × 6SN7

• Cartridge Loading (Resistance): 100 Ω – 47 kΩ selectable

• Cartridge Loading (Capacitance): 100 pF – 1000 pF selectable

• Inputs: 1 × RCA phono input

• Outputs: Balanced XLR output

• Power Consumption: 150 VA

• Dimensions: 19 in W × 5.5 in H × 14 in D

• Weight: approx. 35 lb (15.9 kg)

Summary:
The Balanced Audio Technology VK-P5 is a well-built tube phono stage designed to bring flexibility, low noise, and musical warmth to vinyl playback systems. With its robust tube architecture, adjustable cartridge loading, and balanced output stage, it remains a capable analog component for audiophiles seeking a dedicated phono preamplifier to complement high-quality turntables and cartridges.
