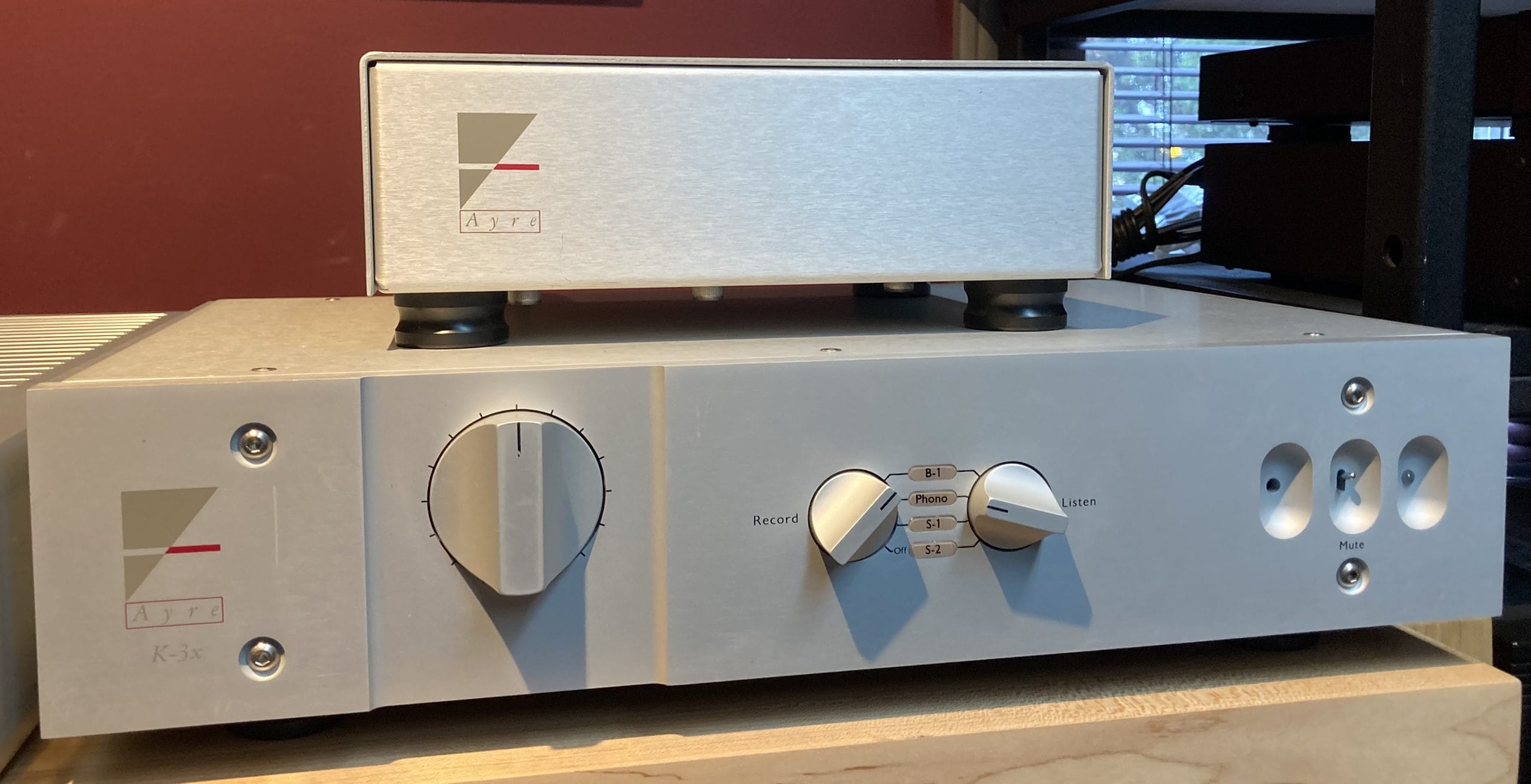

Ayre K-3X Preamp

Description

The Ayre K-3X preamplifier is an evolution of Ayre Acoustics’ highly regarded K-3 platform, bringing the company’s purist design philosophy into a more refined and musically transparent component. Designed for serious audiophiles, the K-3X emphasizes signal integrity above all else, employing fully balanced, zero-feedback circuitry and discrete components to deliver a remarkably natural and uncolored sound.

At its core, the K-3X reflects Ayre’s belief that less interference equals better sound. The preamp uses an all-FET (field-effect transistor), fully discrete topology with no global negative feedback, a design choice intended to preserve the original character of the source material. This approach minimizes phase distortion and allows the music to pass through with exceptional clarity and coherence. According to technical descriptions, the circuit is DC-coupled and uses a simple, elegant three-stage design to maintain purity throughout the signal path.

One of the defining characteristics of the K-3X is its fully balanced architecture, from input to output. Balanced operation reduces noise and improves dynamic range, making the preamp especially effective in high-resolution systems. The unit also features an outboard power supply, which isolates sensitive audio circuitry from electromagnetic interference and contributes to its exceptionally low noise floor.

The K-3X’s build quality is equally impressive. Housed in a thick, machined aluminum chassis, it exudes durability and precision. Controls are intentionally minimal—typically limited to volume, source selection, and mute—reinforcing Ayre’s minimalist philosophy. High-quality rotary switches with silver contacts ensure optimal conductivity and long-term reliability, while the stepped attenuator provides precise volume control without introducing distortion.

Sound Performance

Sonically, the K-3X is known for its transparency and ability to “disappear” in a system. Rather than imposing its own character, it reveals the nuances of each recording with striking accuracy. Reviewers consistently note its ultra-low noise floor and ability to resolve fine detail without sounding analytical or sterile.

Review Quotes

• “As close to the old ‘straight wire with gain’ as I’ve heard.” – Stereophile
• “It revealed the character of the recordings… more than it did its own.” – Stereophile
• “I never caught on to what the K-3 sounded like—and that’s the highest compliment.” – Stereophile

These impressions highlight the K-3X’s defining strength: neutrality. It neither sweetens nor exaggerates, instead acting as a transparent conduit between source and amplifier.

Product Specifications

• Type: Solid-state stereo preamplifier
• Circuit Design: Fully discrete, zero-feedback, all-FET topology
• Configuration: Fully balanced (XLR) and single-ended (RCA)
• Gain:
  • Balanced: ~16 dB
  • Unbalanced: ~10 dB
• Inputs:
  • 2 × balanced (XLR)
  • 2 × unbalanced (RCA)
• Outputs:
  • Balanced (XLR) and unbalanced (RCA)
• Volume Control: Stepped attenuator with precision resistors
• Power Supply: External chassis with toroidal transformers
• Optional Features: Internal MM/MC phono stage
• Output Impedance: ~300 ohms
• Power Consumption: ~30W
• Dimensions (Main Unit): Approx. 460 × 95 × 280 mm
• Weight:
  • Main unit: ~7.5 kg
  • Power supply: ~3.5 kg

Conclusion

The Ayre K-3X stands as a benchmark for minimalist, high-end preamplifier design. Its fully balanced, zero-feedback architecture and meticulous construction allow it to deliver music with exceptional purity and realism. Rather than coloring the sound, it steps out of the way entirely—making it an ideal choice for listeners who value transparency, resolution, and long-term listening satisfaction.
