Audio Research D125 Power Amp

Description

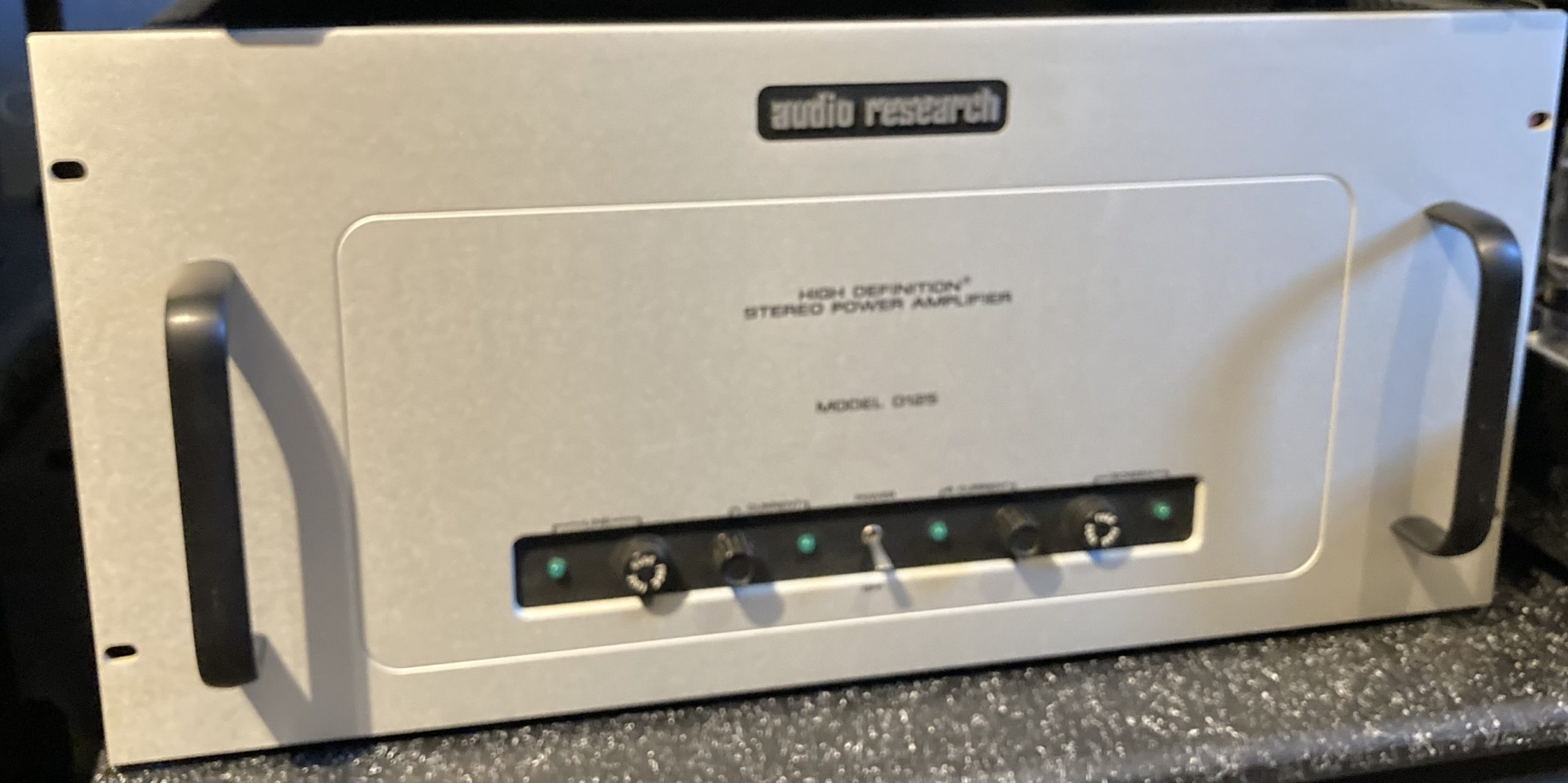

The Audio Research D125 is a classic high-end stereo power amplifier introduced in 1988, representing a transitional moment in amplifier design where tube and solid-state technologies were combined for optimal performance. Built by Audio Research in the United States, the D125 reflects the brand’s long-standing commitment to musical accuracy, engineering rigor, and premium construction.

At its core, the D125 is a hybrid tube/FET power amplifier, using vacuum tubes in the output stage alongside solid-state devices for control and stability. This design allows it to deliver the tonal richness and harmonic complexity of tubes while maintaining improved reliability, bass control, and efficiency compared to fully tube-based designs.

The amplifier produces approximately 110–115 watts per channel, depending on load, and was considered powerful for its time—especially given its ability to drive complex speaker loads with ease.

Design and Engineering

The D125 uses eight 6550 output tubes (four per channel) arranged in a push-pull configuration, delivering Class AB operation with a wide power bandwidth.

A standout feature is its servo-controlled bias system, which automatically maintains proper tube operating conditions. This not only simplifies maintenance but also ensures consistent performance over time.

Another innovation is Audio Research’s “Tube Saver” protection circuit, designed to prevent damage from abnormal conditions such as overloads or faults.

Internally, the D125 is built around a massive power supply and custom transformer, contributing to its sense of effortless dynamics and ability to handle demanding speakers.

Physically, the amplifier is substantial—weighing around 84 lbs (38 kg)—with a rack-width chassis and industrial aesthetic typical of late-1980s high-end gear.

Sound Performance and Character

Sonically, the D125 is often described as combining the best traits of tube and solid-state amplification. It offers a neutral, transparent midrange, extended highs, and tighter bass control than many traditional tube amps.

Its relatively moderate damping factor (around 20) still allows for good speaker control, particularly compared to earlier tube designs.

The amplifier’s wide bandwidth (approximately 10 Hz to 80 kHz) contributes to its open, airy presentation and strong transient response.

Perhaps most notably, the D125 is known for sounding more powerful than its specifications suggest—thanks to its robust power supply and dynamic headroom.

Review Highlights

While formal modern reviews are limited, enthusiast and historical impressions remain highly positive:

• “Sounding much more powerful… sense of ease and dynamic power.”
• “Clear and consistent quality in music.”

From the audiophile community:

“Stronger, tighter bass… more neutral midrange.”

“Amplified by nothing but thin air… more linear and clear.”

These comments highlight a consistent theme: the D125 delivers clarity, control, and musical realism, without the overly warm coloration sometimes associated with tube gear.

Key Specifications

• Type: Hybrid stereo power amplifier (tube + solid-state)
• Years Manufactured: ~1988–1991
• Power Output: ~110–115 W per channel
• Output Tubes: 8 × 6550 (4 per channel)
• Frequency Response / Bandwidth: 10 Hz – 80 kHz
• Total Harmonic Distortion: <0.4%
• Signal-to-Noise Ratio: ~90 dB
• Input Sensitivity: 0.7 V
• Input Impedance: 100 kΩ
• Damping Factor: ~20
• Output Taps: 4, 8, 16 ohms
• Dimensions: 19″ × 8.75″ × 16.5″
• Weight: ~84 lbs (38 kg)

Final Impression

The Audio Research D125 stands as a landmark hybrid amplifier, bridging the gap between traditional tube warmth and modern control. Its combination of robust engineering, innovative protection systems, and balanced sonic character has earned it a lasting reputation among audiophiles.

Even decades after its release, the D125 remains a compelling example of how thoughtful design can deliver both technical performance and musical engagement—a hallmark of Audio Research’s enduring legacy.
