Atma-Sphere S-30 Power Amp

Description

Here’s an in-depth look at the Atma‑Sphere S‑30 Mk. 3.3, one of the most respected compact tube power amplifiers in the high-end audio world. For audiophiles who prize organic tonal richness, tactile musicality, and engineering excellence over raw wattage, the S-30 is more than just an amplifier — it’s a reference-level triode OTL (Output Transformer-Less) design that represents the pinnacle of Atma-Sphere’s amplifier philosophy.

The S-30 has been refined over decades into its current Mk. 3.3 iteration, and it’s renowned for delivering 30 watts per channel into 8 ohms with a fully balanced, Class-A2 direct-coupled output stage that eschews transformers entirely. That topology — patented as Circlotronic® — ensures a direct, immediate connection between speaker and signal without the lag or coloration of output transformers. This, combined with a single gain stage per channel and point-to-point hand-wired construction, results in astonishing clarity, coherence, and unforced musical expression.

What sets the S-30 apart in a crowded field of tube amps is its unwavering commitment to simplicity and purity. There’s no feedback loop wrestling the sound into linearity, no switching quirks — just a beautifully realized triode circuit that allows the listener to experience music as music. One longtime owner and reviewer remarked, “Within its power limitations, I find the Atma-Sphere S-30 to be as good overall as any amplifier I have ever used, bar none… none have the top-to-bottom excellence so evident in this amp.” This sentiment reflects the amp’s ability to balance musical coherence, harmonic integrity, and spatial detail in a way rarely heard in modern designs.

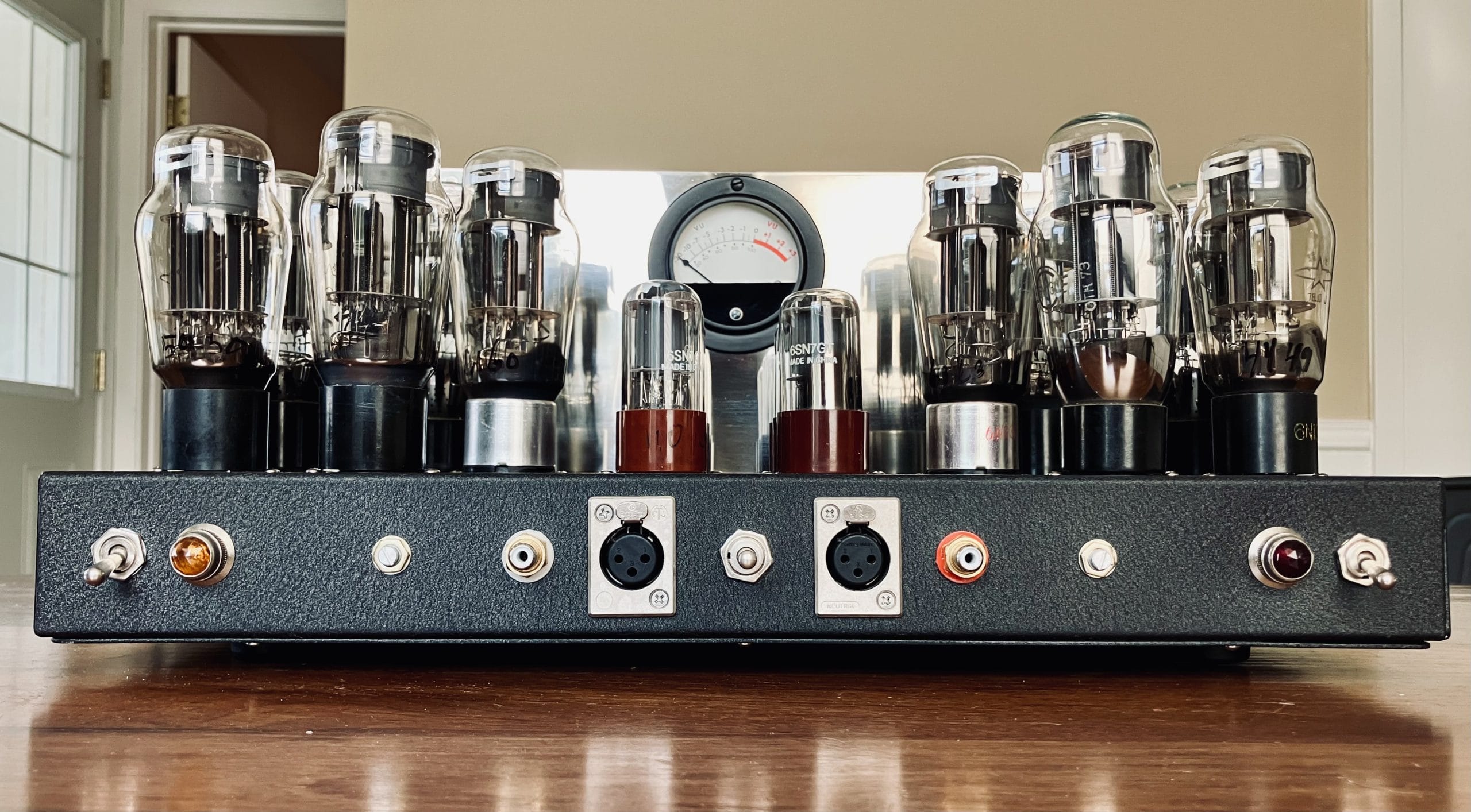

The S-30’s aesthetic also speaks to audiophile ethos — a classic open-chassis layout with high-visibility tubes and a large VU meter not only helps monitor output but gives the amp a timeless, purposeful presence in any system. Automatic biasing means the owner isn’t burdened with tedious tube adjustments, yet the circuitry remains completely serviceable and customizable with premium aftermarket capacitors and resistor packages.

Sonically, the S-30 has been praised for its timbral warmth without sacrificing detail, its soundstage depth and width, and its organic midrange that renders voices and instruments with palpability and realism. In user forums and feedback pages, owners commonly describe it as “clean and transparent yet full-bodied,” with a richness and dynamic ease that encourages long listening sessions without fatigue. In particular, its midrange — often the telltale region where tube amplifiers shine — is frequently described as “alive,” “natural,” and “emotionally engaging.”

Of course, this isn’t a high-power amplifier by modern standards — pairing it with efficient speakers (or using bi-amping strategies) helps it shine its brightest. But when integrated appropriately, the S-30’s blend of engineering prowess, musical empathy, and timeless design make it a benchmark OTL amplifier — a product that many experienced audiophiles consider the ultimate balance of tube magic and technical excellence at moderate power levels.

Key Specifications:

• Output Power: 30 watts per channel into 8 Ω; 45 W into 16 Ω

• Topology: Balanced Differential Design®; Circlotronic® direct-coupled OTL; Class-A2 operation

• Inputs: RCA single-ended and XLR balanced (3 V sensitivity)

• Input Impedance: 100 kΩ (SE), 200 kΩ (balanced); Output Impedance: 7 Ω

• Tube Complement: 10 × 6AS7G output tubes; 6 × 6SN7 driver tubes

• Gain: 23 dB (8 Ω)

• Frequency Response: 1 Hz–200 kHz ± 3 dB; Power Bandwidth 2 Hz–75 kHz ± ½ dB

• Distortion: THD ≈ 1 % at full power; IM < 0.04 %

• Hum & Noise: < -75 dB below 1 W; < -95 dB at full power

• Dimensions: 17″ × 8″ × 13″ (W×H×D); Weight ~24 lbs (10.9 kg)

• Construction: Hand-wired point-to-point, star grounding

• Power Consumption: ~400 W
